What Is a UV Laser Marking Machine?

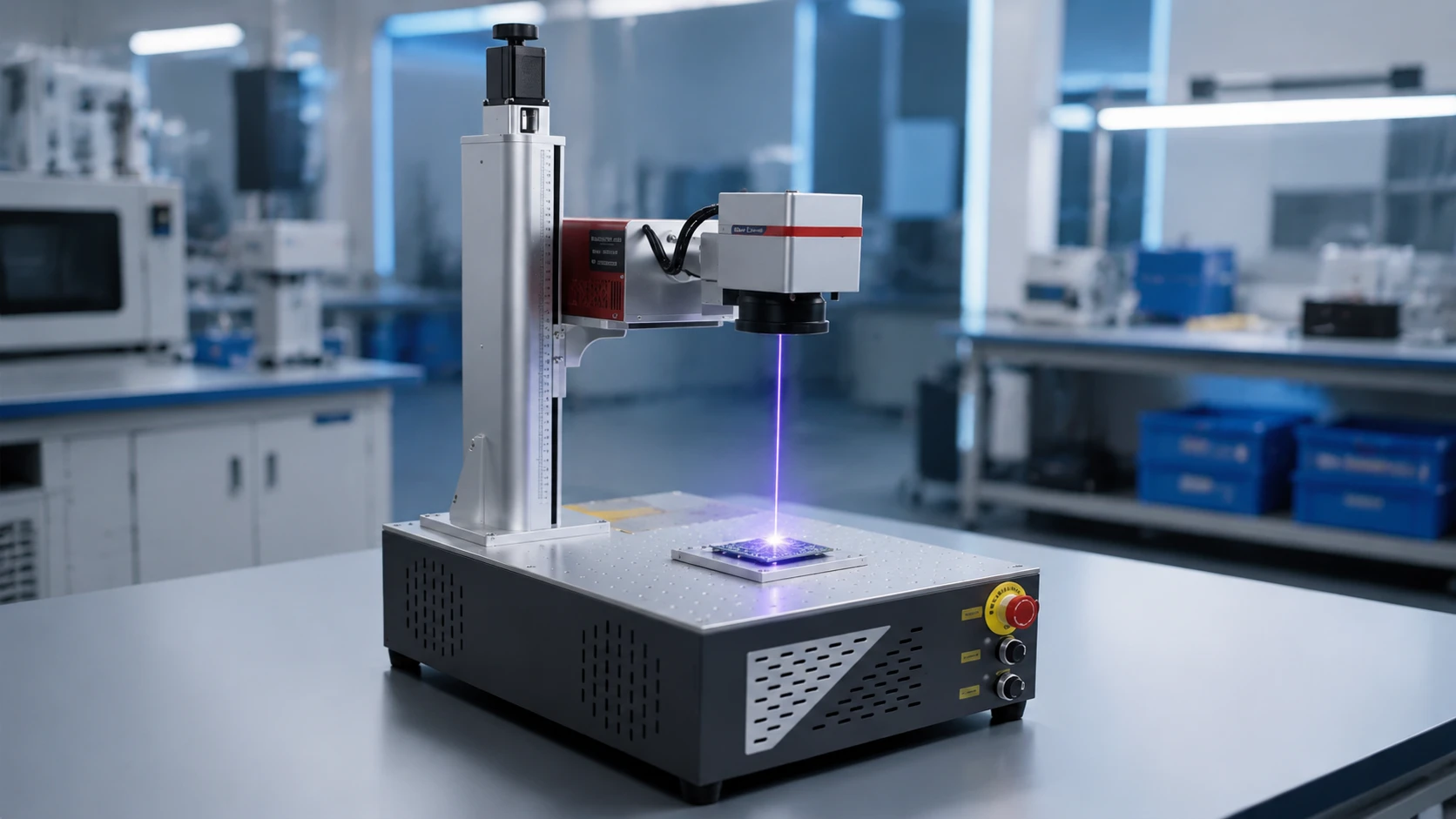

A UV laser marking machine is a laser-based marking system that emits ultraviolet light at a wavelength of 355 nm — roughly one-third the wavelength of a standard fiber laser. Unlike conventional infrared lasers that rely on heat to burn or melt a surface, a laser uv marking machine uses a process called cold marking (photolytic ablation) to break molecular bonds directly with high-energy photons. This makes it the preferred choice for marking heat-sensitive materials where thermal damage is unacceptable.
So, what is a uv laser marking machine in practical terms? It is a precision tool that produces permanent, high-contrast marks — serial numbers, barcodes, logos, date codes, and 2D data matrix codes — on a wide range of materials without burning, melting, or warping the workpiece. The technology is widely adopted across electronics, medical devices, automotive parts, and consumer goods manufacturing.
How Does a UV Laser Marking Machine Work?
The core technology behind this system is a frequency-tripled solid-state laser design. A 1064 nm infrared beam from a Nd:YAG or Nd:YVO₄ laser crystal passes through two nonlinear optical crystals (typically LBO or BBO) that convert it first to 532 nm (green) and then to 355 nm ultraviolet light. This process — known as frequency tripling — is the standard method used to generate virtually all commercial 355 nm UV laser output, as documented in the RP Photonics Encyclopedia.
The 355 nm UV wavelength carries significantly higher photon energy than infrared light. When the beam strikes a material surface, the photons are energetic enough to directly break molecular bonds through photochemical degradation — a process called cold marking. Unlike fiber lasers that transfer heat into the material to create a mark, a uv marking laser removes or discolors material at the surface with minimal thermal transfer. The result is a heat-affected zone (HAZ) near zero, meaning no burning, melting, or micro-cracking on the material surrounding the mark.
Because the absorption rate of the 355 nm wavelength is extremely high across many materials — including plastics, ceramics, glass, and metals — the laser does not need high power to achieve a clear, permanent mark. This is a fundamental advantage that sets this technology apart from conventional marking approaches.
UV Laser vs. Fiber Laser: Key Differences at a Glance
Understanding the difference between a UV laser marking machine and a fiber laser is essential for choosing the right system. The table below summarizes the most important distinctions.
| Parameter | UV Laser (355 nm) | Fiber Laser (1064 nm) |
|---|---|---|
| Marking mechanism | Cold marking (photochemical bond breaking) | Thermal marking (heat-induced oxidation/melting) |
| Heat-affected zone | Near zero — no thermal damage | Visible — risk of burning on sensitive materials |
| Spot size (precision) | 10–20 µm — micro-text and fine detail | 30–50 µm — bold, legible marks |
| Best for | Plastics, glass, ceramics, PCBs, medical devices | Metals (stainless steel, aluminum, iron) |
| Marking speed on metals | Slower — better for precision | Fast — ideal for high-volume metal marking |
| Marking speed on plastics | Fast — high UV absorption | Slow — risk of melting |
| Typical power range | 3 W – 15 W | 20 W – 100 W+ |
| Maintenance interval | 10,000–15,000 hours (diode replacement) | 50,000+ hours (fiber laser) |
Data sources: industry comparison from optical physics and published laser specifications — see citations for precision figures.
The shorter wavelength of the UV laser allows a spot size of 10–20 microns, enabling micro-text, hairline details, and high-resolution artwork that fiber lasers cannot match at comparable settings. For materials like plastics, the UV laser’s high absorption rate means it can mark faster than a fiber laser even at lower wattage, because the fiber laser’s heat would melt or distort the surface.
Key Benefits of UV Laser Marking Machines
The benefits of uv laser marking machines go far beyond precision. Here are the most significant advantages that drive adoption across industries:
- Zero thermal damage. The cold marking process eliminates burn marks, discoloration, and micro-cracking. This is critical for medical devices, food packaging, and electronic components where surface integrity is non-negotiable.
- Superior contrast on plastics. UV lasers produce bright, clean marks on ABS, polycarbonate, PVC, nylon, and other engineering plastics — materials that are notoriously difficult to mark with infrared lasers without charring.
- High precision and fine detail. With a focused spot size as small as 10 microns, a UV laser can produce 2D codes, micro-text, and intricate logos that are readable under magnification.
- Versatility across materials. A single UV laser marking machine can mark plastics, metals, glass, ceramics, rubber, and coated surfaces — making it a true multi-material solution.
- Permanent, tamper-resistant marks. UV marks are etched into the material surface, not printed on top. They withstand abrasion, solvents, and sterilization cycles.
- Low maintenance. Modern UV laser sources use long-life diodes and sealed optical paths, reducing the need for field service.
Common Applications and Use Cases
UV Laser Marking Machine for Plastic
A uv laser marking machine for plastic is one of the most common deployments of this technology. Plastics such as ABS, polycarbonate, PET, polyamide (nylon), and PPE are widely used in automotive interiors, consumer electronics, and medical housings. Infrared lasers often burn or melt these materials, producing a rough, low-contrast mark. A UV laser, by contrast, produces a clean, white or light-gray mark with sharp edges and no heat damage. The marking is applied through photochemical bond breaking rather than melting, preserving the surface finish of the plastic part.
UV Laser Marking Machine for Metal
A uv laser marking machine for metal is capable of marking stainless steel, aluminum, titanium, copper, brass, and even gold without the high heat input of a fiber laser. While fiber lasers offer faster speeds on metal, the UV laser provides a finer, cleaner mark with no micro-cracking around the edges. This is especially valuable for marking thin metal foils, anodized aluminum surfaces, or components where the structural integrity of the metal must be preserved. For applications requiring both high precision and a cosmetic-grade finish, a uv laser marker on metal often outperforms its fiber counterpart.
Electronics and Semiconductor Marking
In the electronics industry, components are getting smaller and more heat-sensitive. UV lasers are the standard for marking PCBs, IC packages, connectors, and capacitors. The cold marking process ensures that delicate electronic components are not damaged during marking. The semiconductor industry relies on UV marking lasers for wafer-level traceability marks that must survive downstream fabrication steps.
Medical Device and Pharmaceutical Marking
Medical device manufacturers require permanent, clean marks on surgical instruments, implants, and diagnostic equipment. UV lasers meet the strict regulatory requirements of ISO 13485 and FDA 21 CFR Part 820 because they produce marks that are biocompatible and free of residues. In pharmaceutical packaging, UV lasers mark blister packs, vials, and syringe barrels with lot numbers and expiry dates without compromising the sterile barrier.
5W vs. 10W UV Laser Marking Machine: Which Power Level Is Right for You?
Choosing between a 5w uv laser marking machine and a 10w uv laser marking machine depends on your production volume, material types, and budget. The table below breaks down the practical differences.
| Factor | 5W UV Laser | 10W UV Laser |
|---|---|---|
| Relative speed | Baseline | 40–60% faster on equivalent materials |
| Fine detail | Excellent — easier to calibrate for fine marks | Good — higher minimum power can make subtle marks harder to dial in |
| Deep engraving | Slower, requires more passes | Nearly 2× depth per pass on wood and aluminum |
| Best for | Glass, jewelry, thin plastics, anodized aluminum, low-volume production | Raw metals, thick plastics, high-volume production runs |
| Cost | Lower upfront investment | Higher upfront, faster ROI at scale |
| Typical applications | Prototyping, small batches, precision marking | Production lines, shift-long operation, multi-material jobs |
Speed and depth data based on published testing — see citations.
For a business running 50+ marked parts per day, the 10W model’s speed advantage translates directly into higher throughput and lower per-part cost. For a job shop that handles a wide variety of one-off pieces — especially glassware, jewelry, or thin plastic parts — the 5W model offers the best balance of precision and affordability.
How to Select the Right UV Laser Marking Machine for Your Business
When evaluating a UV marking laser system, consider these five criteria:
- Material profile. List every material you need to mark. If you mark mainly plastics, glass, and coated metals, a UV laser is the clear choice. If you mark only raw metals at high volume, consider a fiber laser — or evaluate both.
- Production volume. Estimate daily part count. A 5W UV laser is cost-effective for up to roughly 100 parts per day. Above that, the 10W’s speed premium pays for itself.
- Mark size and detail. For micro-text under 0.5 mm or high-density 2D codes, ensure the system offers a galvo head with a short focal length lens for the smallest spot size.
- Integration requirements. Does the machine support conveyor integration, rotary axis, or vision alignment? These features affect how easily the laser fits into your existing production line.
- Compliance and safety. Most industrial UV laser marking machines are designed to meet IEC 60825-1 Class 1 safety requirements when enclosed — meaning no special operator certification is needed for daily use.
Conclusion
A UV laser marking machine is a powerful, versatile tool that solves the real-world challenge of marking heat-sensitive materials with precision and permanence. Its cold marking technology — built on a 355 nm wavelength, frequency-tripled laser design — delivers marks that are clean, durable, and free of thermal damage. Whether you need a uv laser marking machine for plastic components, a uv laser marking machine for metal parts, or a solution for medical and electronics traceability, UV laser technology offers a compelling combination of quality and reliability. Put simply, a what is uv laser marking machine question is best answered by understanding its cold marking advantage across every material it touches.
As the laser marking market continues to grow — with UV laser systems projected to be the fastest-growing segment — the case for investing in this technology becomes stronger every year. If you are evaluating a new marking solution, start by matching your material mix and throughput requirements to the right power tier and configuration. A well-chosen UV laser system will serve your production line for years with minimal maintenance and consistent, inspection-grade results.
