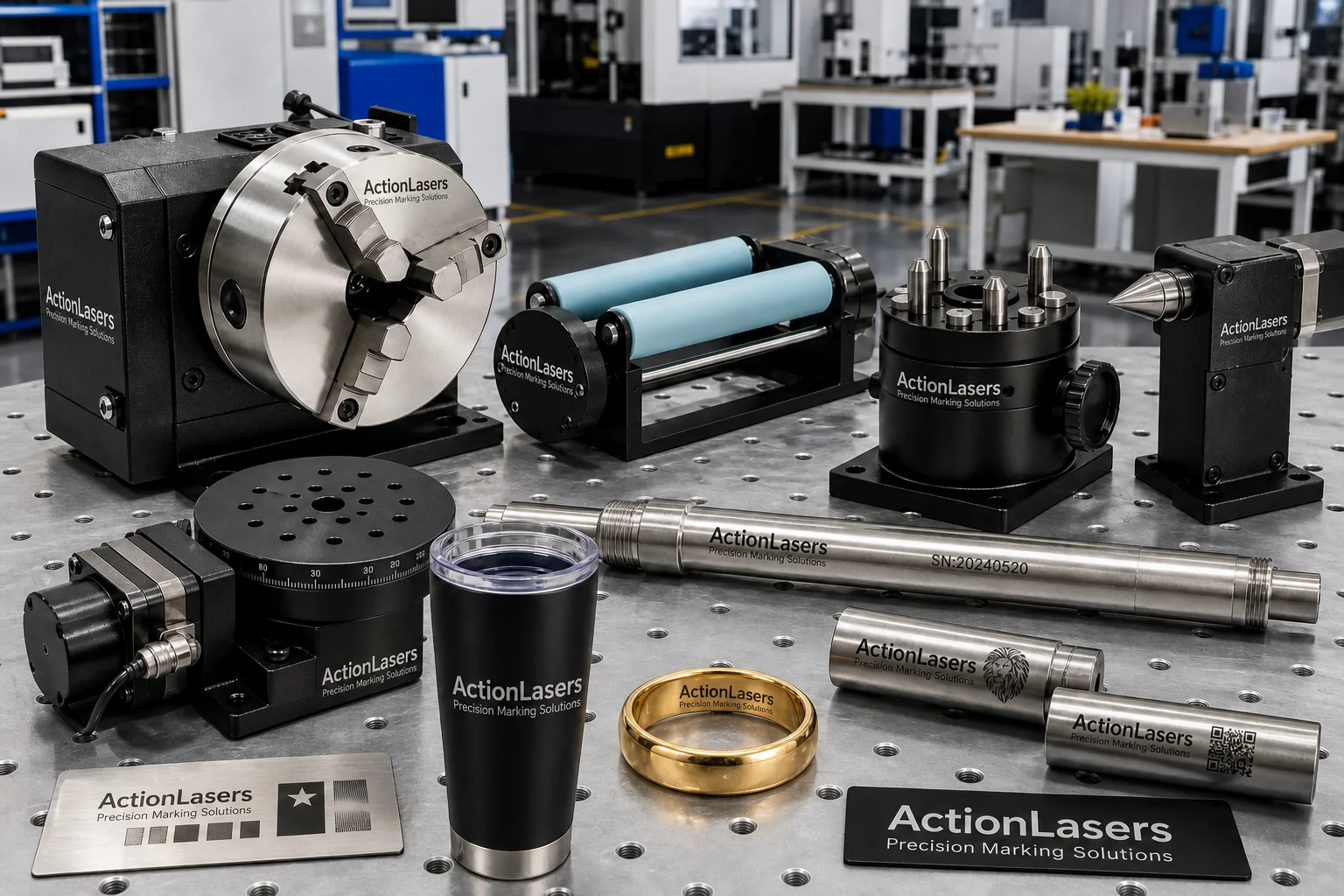

Standard industrial 2D laser marking, engraving, and cutting systems utilize fixed-field F-theta scanning lenses ($X/Y$ axes). When marking curved surfaces, the beam rapidly loses focus beyond the lens depth of focus (DOF). By interfacing external motorized rotary attachments and multi-axis positioning fixtures, operators transform standard flatbed markers into synchronized multi-axis workstations for 360° cylindrical items, inner ring circumferences, extra-long measuring scales, mass batch components, and stepped irregular workpieces.
Table of Contents: The 6 Core Attachment Families
- Family 1: Mechanical 3-Jaw & 4-Jaw Scroll Chuck Rotaries (Items 1, 2, 3, 11, 14, 15, 21)
- Family 2: Friction Roller & Dual-Wheel Rotaries (Items 4, 5, 7, 8, 9, 10, 18, 19, 24, 25)
- Family 3: Jewelry Multi-Pin & Finger Chuck Rotaries (Items 12, 13, 22, 23)
- Family 4: Lathe-Type Chuck + Tailstock Live-Center Fixtures (Items 6, 20, 26, 27)
- Family 5: Automated Multi-Station Indexing Turntables (Item 17)
- Family 6: Linear Slide Stages, Breadboards & Precision Vises (Items 16, 28, 29, 30)
- Customer Selection & Application Decision Matrix

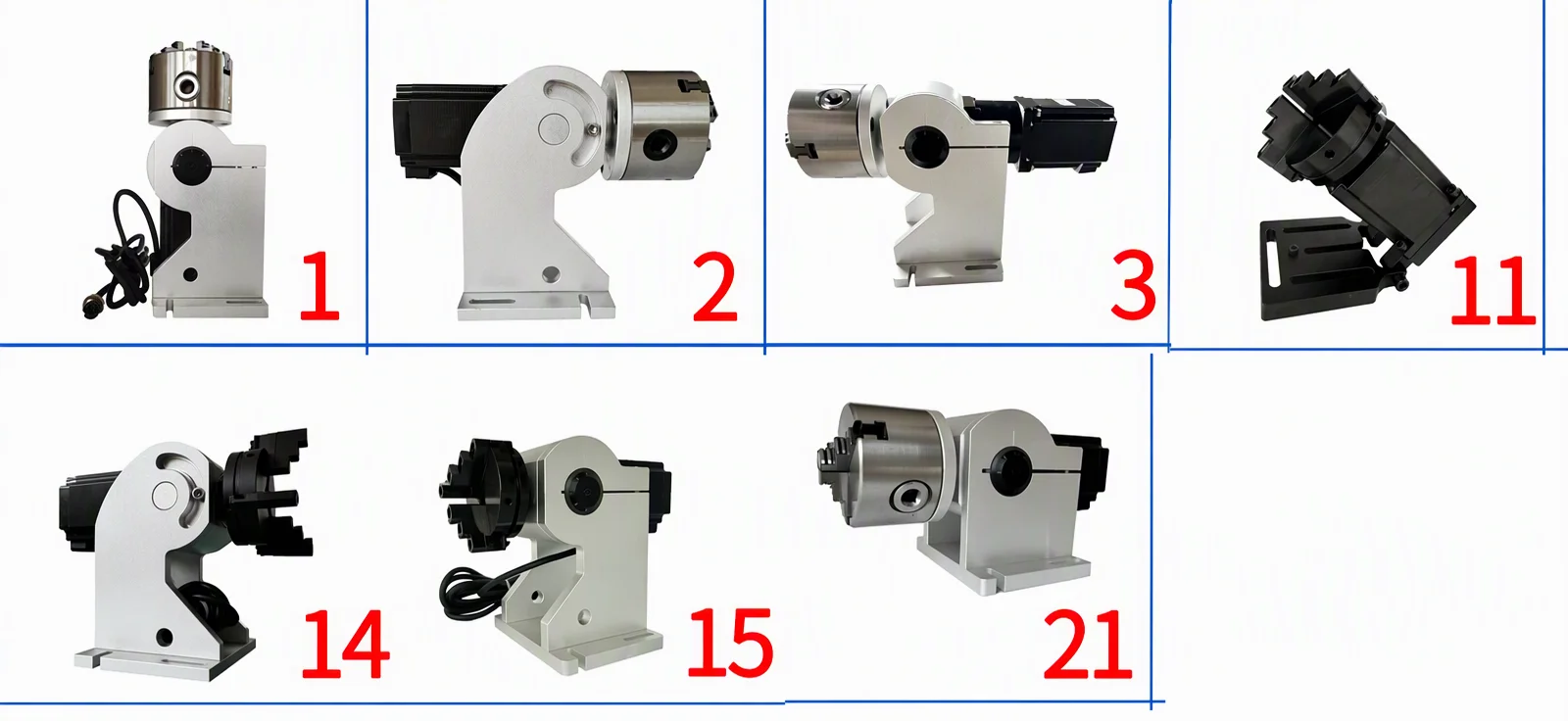

1. Family 1: Mechanical 3-Jaw & 4-Jaw Scroll Chuck Rotaries (High-Torque Clamping)
Primary Function: High-rigidity, positive mechanical clamping for solid metal shafts, pipe fittings, heavy flanges, and hardware tools requiring 360° circumferential engraving without rotational slippage.
| Item No. | Fixture Model & Type | Core Structural Mechanism | Primary Industrial Applications |
|---|---|---|---|
| [Item 1] | Vertical Fixed 3-Jaw/4-Jaw Chuck | Compact 50/65mm scroll chuck on perpendicular L-bracket | Short solid cylinders, sockets, round metal tags, drill bit shanks |
| [Item 2] | 0°–90° Tiltable Swivel 3-Jaw Chuck | Calibrated radial arc sector mount with angle lock | Bevel gears, tapered nozzles, angled inner/outer ring marking |
| [Item 3] | Cantilever Height-Adjustable Chuck | Elevated cantilever stanchion with under-chuck clearance | Cups with handles, offset hardware, asymmetric hanging parts |
| [Item 11] | Heavy-Duty Tiltable 3-Jaw Chuck | 80mm/100mm industrial chuck on high-friction hinge base | Heavy steel shafts, hydraulic couplings, thick-walled hardware |
| [Item 14] | Heavy-Duty Swivel-Arm Chuck | Cast arc frame with precision timing-belt reduction | Deep relief metal engraving, zero-backlash high-torque marking |
| [Item 15] | Elevated Stanchion Dual-Clamping Chuck | High center-line clearance with multi-slot table mounting | Large-diameter cylinders, oversized automotive flanges, wide drums |
| [Item 21] | Low-Profile Compact 3-Jaw Chuck | Space-saving horizontal motor layout | Enclosed Class 1 desktop cabinets with restricted Z-height clearance |

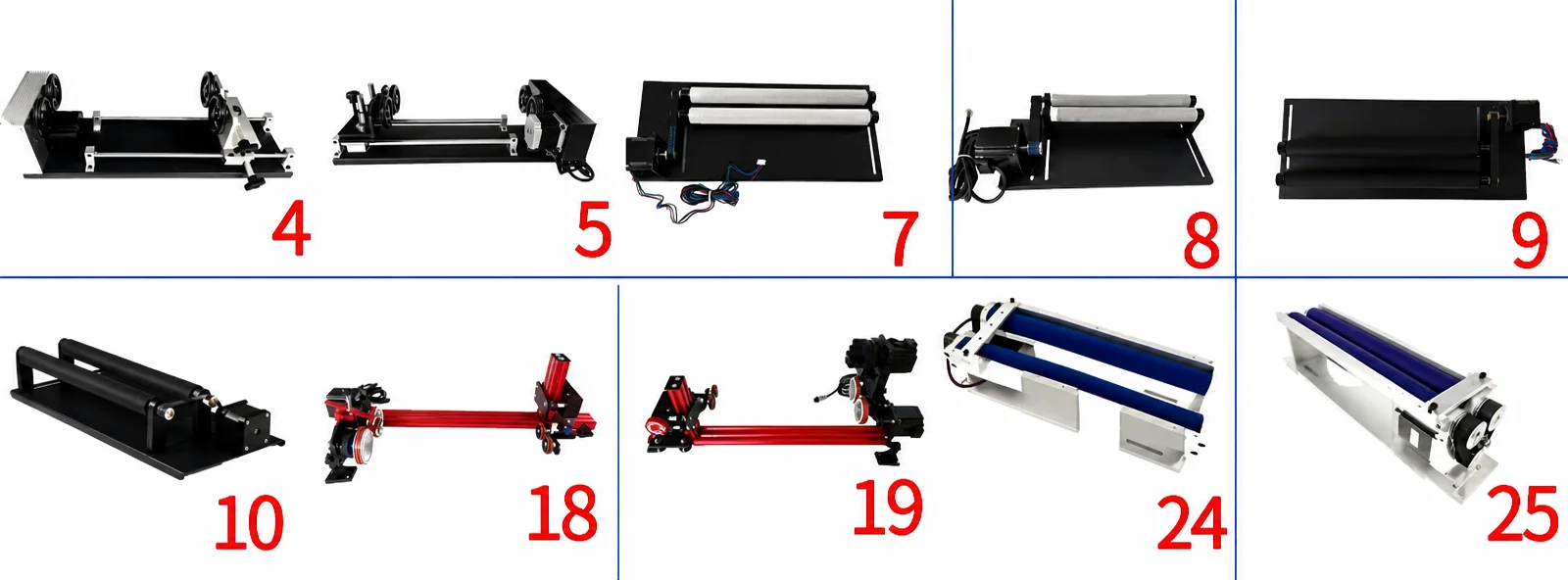

2. Family 2: Friction Roller & Dual-Wheel Rotaries (Non-Marring Surface Drive)
Primary Function: Scratch-free rotation for powder-coated and painted drinkware (Yeti/Stanley tumblers, wine bottles, aluminum cans, glass mugs) where chuck jaws would leave clamping marks.
| Item No. | Fixture Model & Type | Core Structural Mechanism | Primary Industrial Applications |
|---|---|---|---|
| [Item 4] | Dual-Support Adjustable-Width Roller | Twin rubber wheel pairs with thumb-screw rail spacing | Stepped bottles, drink cans, multi-diameter containers |
| [Item 5] | Multi-Wheel Linked Roller Fixture | Four independent belt-linked wheel brackets | Irregular bottles, champagne flutes, curved glassware |
| [Item 7] | Full-Length Silicone Roller Bed | Dual continuous silicone rubber drive rollers | Coated tumblers, painted aluminum bottles (100% scratch-free) |
| [Item 8] | Enclosed Heavy-Duty Roller Bed | Heavy steel chassis with protective internal motor box | High-volume industrial lines (shields belts from spatter and dust) |
| [Item 9] | Ultra-Low-Profile Desktop Roller | Slim lightweight baseplate with twin friction rollers | Desktop craft diode, UV, and fiber laser engravers |
| [Item 10] | Anti-Bounce Overhead Clamp Roller | Bottom drive rollers + spring-loaded top silicone wheel | Empty beverage cans, thin plastic tubes (eliminates skipping) |
| [Item 18] | Extended Dual-Rail Wheel Roller | Long-span modular aluminum extrusion rails | Golf club shafts, fishing rods, long architectural pipes |
| [Item 19] | Long-Shaft Synchronized Wheel Roller | Central torque shaft driving front and rear rollers | Heavy long tubes (eliminates rotational lag between ends) |
| [Item 24] | Precision Silicone Roller with Axial Stop | Blue silicone rollers + vertical adjustable stop fence | Cosmetic tubes, medical vials (prevents axial walking < 0.05mm) |
| [Item 25] | All-Gear Synchronized Heavy Roller | Precision spur gears linking rollers for 1:1 drive | Heavy glass bottles, thick ceramic cylinders, stone columns |

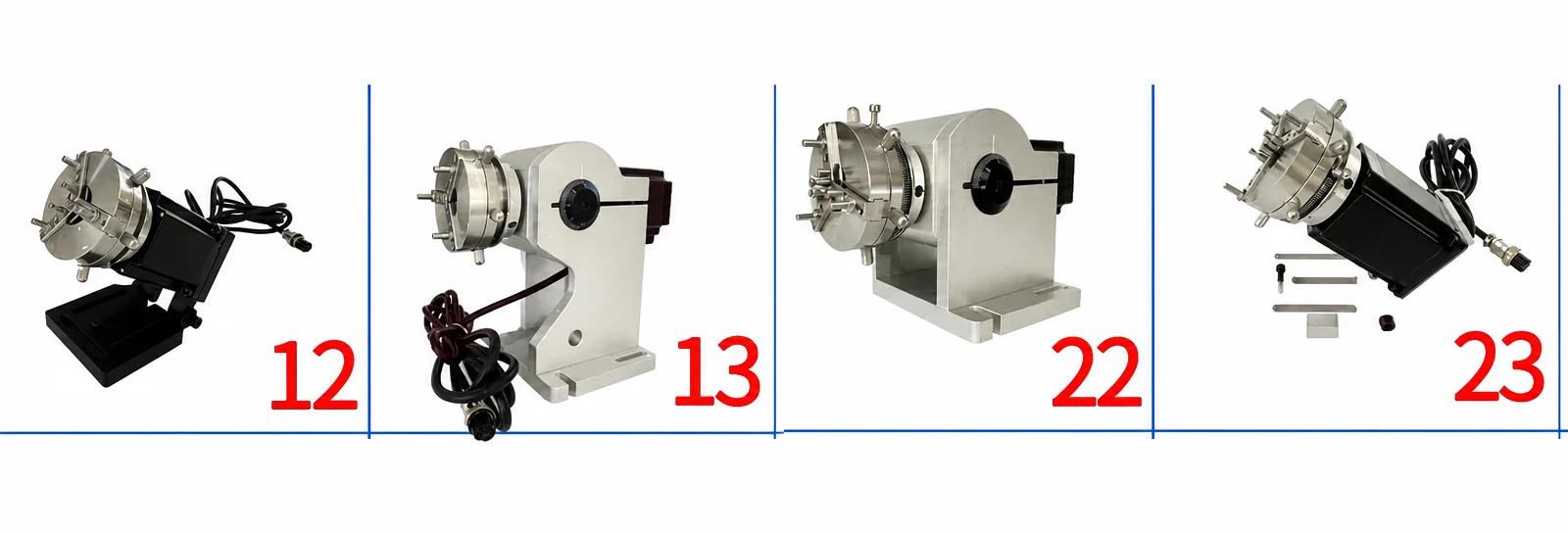

3. Family 3: Jewelry Multi-Pin & Finger Chuck Rotaries (Micro Hallmark Engraving)
Primary Function: Precise 360° internal and external hallmarking on precious metal rings (Gold, Platinum, Silver) and bangles without jaw clamp marks.
| Item No. | Fixture Model & Type | Core Structural Mechanism | Primary Industrial Applications |
|---|---|---|---|
| [Item 12] | Tiltable Multi-Pin Jewelry Chuck | Expandable stepped brass/steel pins on tilt base | Ring inside/outside engraving without leaving mechanical dents |
| [Item 13] | Cast-Aluminum Heavy Jewelry Rotary | Heavy-duty cast aluminum body with microstepping drive | Jewelry store batch hallmarking of trademarks and serials |
| [Item 22] | Low-Profile Wide Bangle Rotary | Wide expansion pins (10–80mm) with compact height | Bangles, cuff bracelets, and wide ring bands in small cabinets |
| [Item 23] | Direct-Drive Micro Jewelry Rotary | Direct motor shaft coupling (zero belt backlash) | Ultra-fine vector script, cursive names, and micro hallmarks |

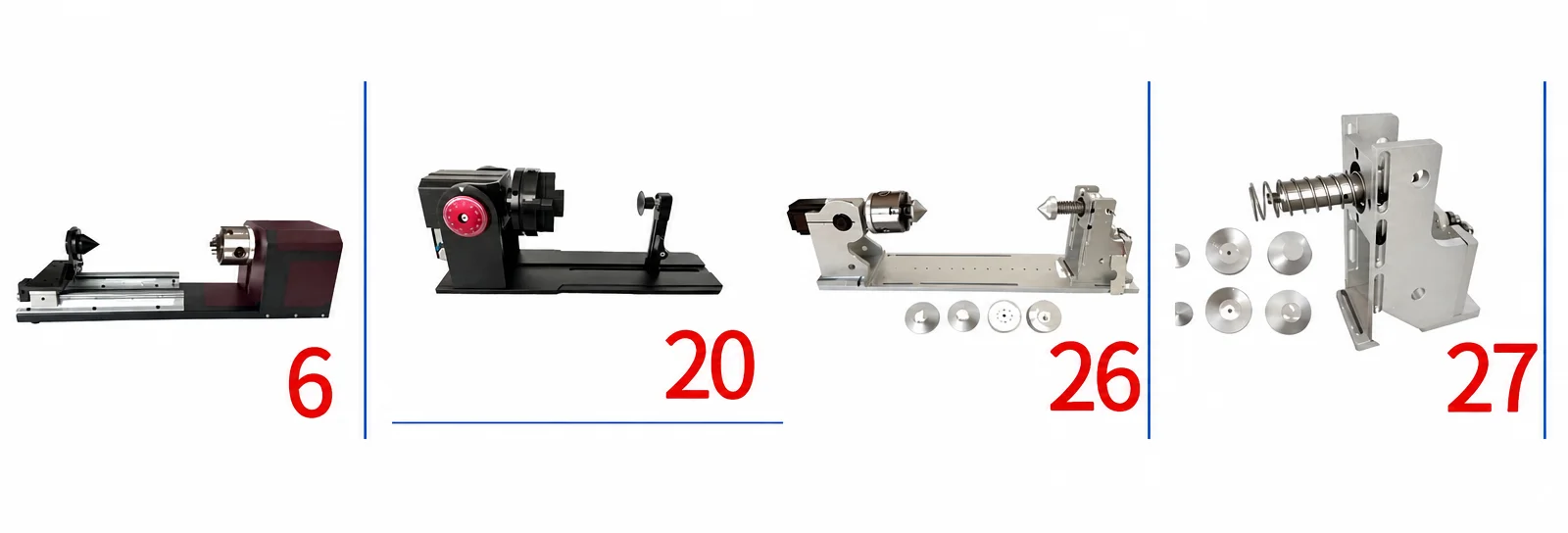

4. Family 4: Lathe-Type Chuck + Tailstock Live-Center Fixtures (Concentric Clamping)
Primary Function: Rigid dual-end concentric support for slender metal shafts, pens, and drill bits, preventing flex and runout during high-speed marking.
| Item No. | Fixture Model & Type | Core Structural Mechanism | Primary Industrial Applications |
|---|---|---|---|
| [Item 6] | Lathe-Bed Chuck + Tailstock System | Linear guide rail bed with drive chuck and live center | Luxury metal pens, screwdrivers, long slender shafts |
| [Item 20] | Precision Mini Lathe Center Rotary | Micro scroll chuck with micrometer tailstock | Tungsten carbide end mills, medical drills, miniature shafts |
| [Item 26] | Multi-Cone Step Center Rotary | Multi-tier stepped cones on headstock and tailstock | Hollow pen barrels and plastic sleeves (5–40mm ID) |
| [Item 27] | Spring-Loaded Quick-Release Tailstock | Quick-action pull lever with auto-tension spring | High-speed production lines (2-second rapid part changeover) |

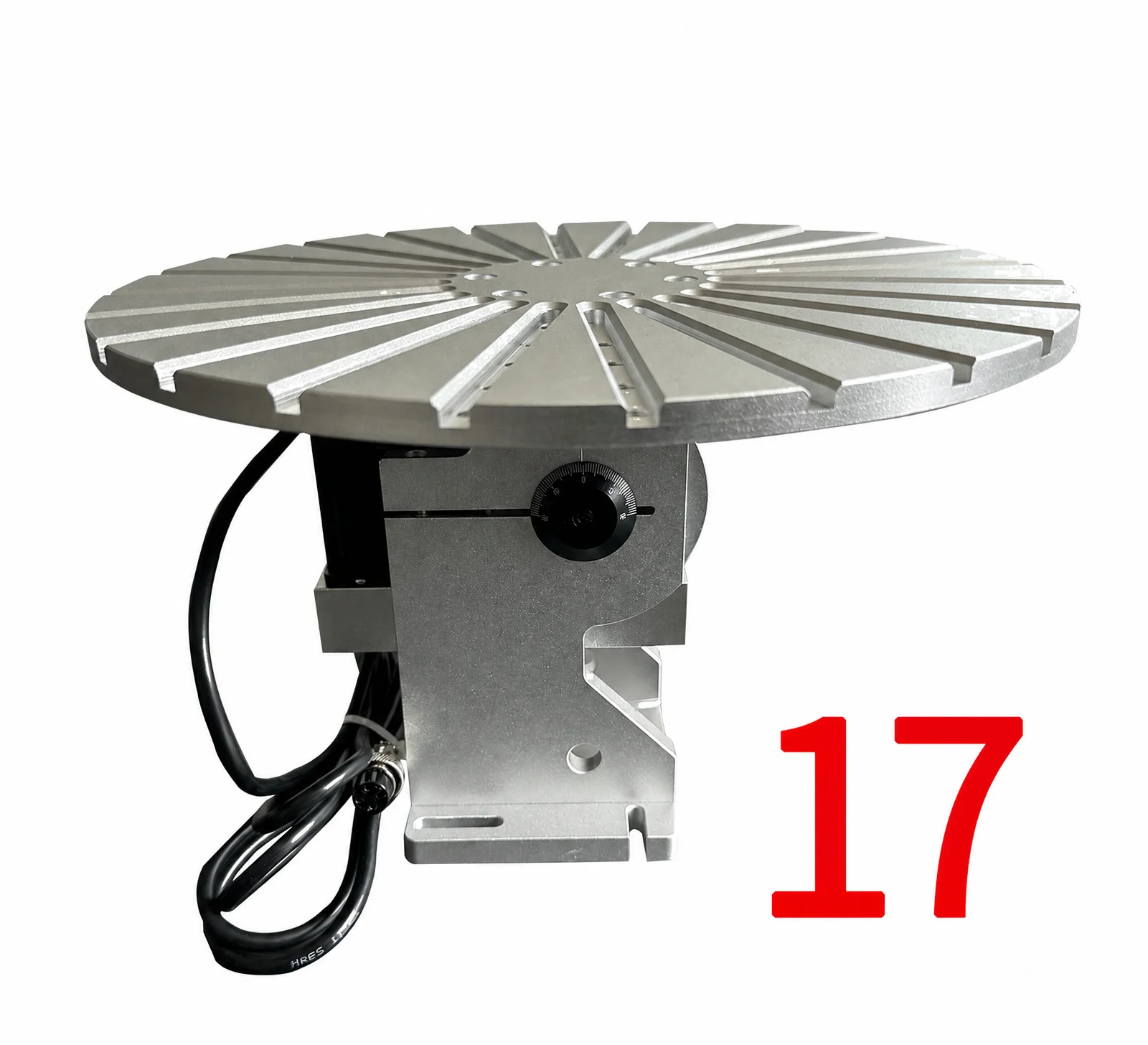

5. Family 5: Automated Multi-Station Indexing Turntables
Primary Function: High-speed automated batch production for small flat or round items (dog tags, buttons, bottle caps, badges).
| Item No. | Fixture Model & Type | Core Structural Mechanism | Primary Industrial Applications |
|---|---|---|---|
| [Item 17] | Motorized Indexing Turntable (Dial Plate) | Planetary reduction stepper driving radial jig disc | Mass batch marking of tags, buttons, bottle caps (3×–5× speed) |

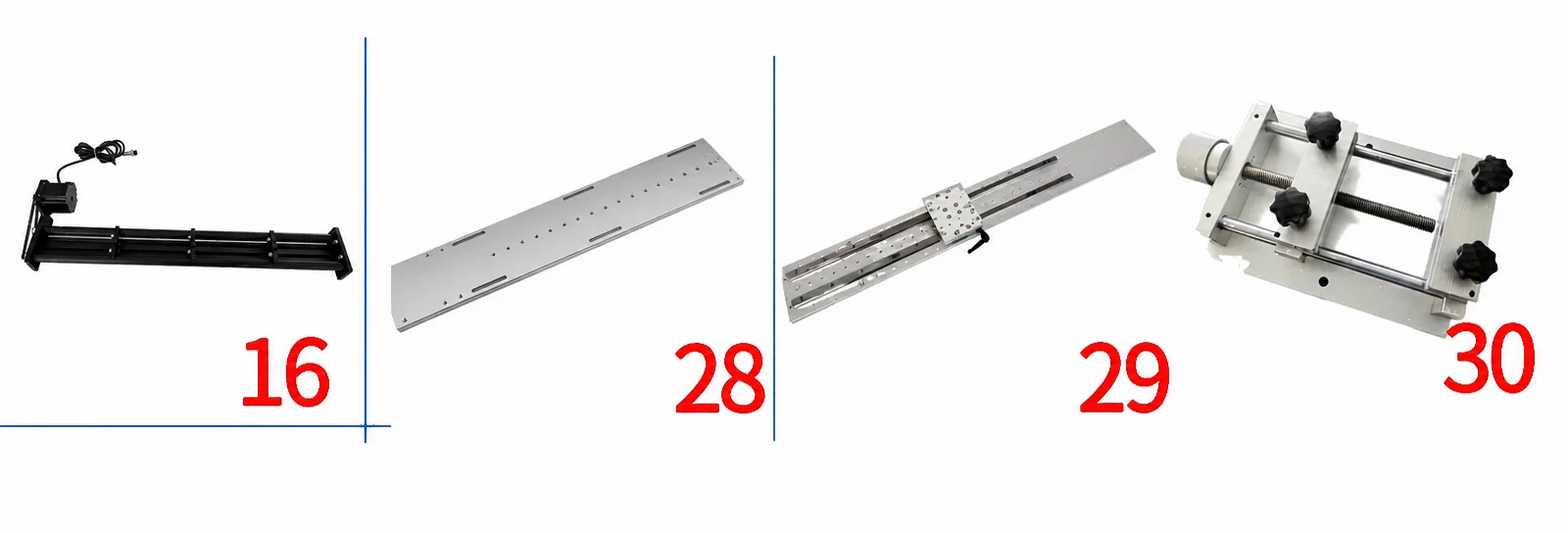

6. Family 6: Linear Slide Stages, Breadboards & Precision Vises
Primary Function: Extended linear travel for long measuring scales, universal baseplate clamping, and leveling irregular or stepped cast parts under the laser focal plane.
| Item No. | Fixture Model & Type | Core Structural Mechanism | Primary Industrial Applications |
|---|---|---|---|
| [Item 16] | Long-Travel Motorized Linear Slide Stage | Synchronized ball-screw / belt linear axis | Continuous long measuring tapes, rulers, extrusions (500–1000mm) |
| [Item 28] | M6 Thread Grid Aluminum Breadboard | CNC anodized plate with standard 25mm M6 hole array | Universal baseplate for quick fixture mounting and zero-point setup |
| [Item 29] | Dovetail Micrometer Slide Stage | Lead-screw micrometer fine adjustment with lock | Optical focal distance micro-tuning and precision part alignment |
| [Item 30] | 2D/3D Precision Leveling Vise | Dual-knob knurled clamp with tilt leveling mechanism | Clamping and leveling stepped, irregular, or non-parallel cast parts |
7. Customer Selection & Application Decision Matrix
| Workpiece Type & Material | Recommended Attachment Nos. | Key Operational Advantage |
|---|---|---|
| Rings, Bangles, Wedding Bands (Gold, Pt, Ag) | [12], [13], [22], [23] | Zero jaw marks; 360° inside/outside micro hallmarking |
| Insulated Tumblers, Glass Bottles, Beer Cans | [4], [7], [8], [10], [24] | Silicone non-scratch friction; anti-bounce top wheel |
| Metal Pens, Drill Bits, Small Motor Shafts | [6], [20], [26], [27] | Lathe chuck + tailstock center for zero runout |
| Heavy Steel Pipes, Flanges, Hardware Tools | [1], [2], [11], [14], [15] | High clamping torque; 0°–90° angle tilt capability |
| Mass Batch Tags, Buttons, Plastic Caps | [17] (Turntable) | Continuous loading while marking (3×–5× speed) |
| Long Measuring Rulers, Architectural Profiles | [16], [18], [19] | Extended synchronized linear or dual-rail motion |
| Odd-Shaped Castings, Stepped Molds | [29], [30] (Leveling Vise) | Multi-axis height compensation to eliminate defocusing |
8. Software Pulse & Gear Calibration (EZCAD & LightBurn)
To ensure vector curves and cylindrical text do not stretch, compress, or misalign upon 360° closure, configure the expansion axis pulse multiplier using:
- Standard NEMA 23 Stepper (1.8°): 200 full steps per revolution.
- Driver Microstepping Setting: Typically configured to 1600 or 3200 pulses/rev.
- Gear Reduction: Direct drive = 1:1; Timing belt reduction = 2.5:1, 3:1, or 4:1.
- In EZCAD (RotaryMark F9): Enable Invert if rotational direction is flipped, and calibrate the scale multiplier using a 10×10 mm test vector.
9. Frequently Asked Questions (FAQ)
Q1: When should I choose a Roller Rotary over a 3-Jaw Chuck Rotary?
A: Choose a Roller Rotary for drinkware (Yeti/Stanley cups), wine bottles, and coated tumblers where mechanical jaws would scratch paint or crack thin glass. Choose a 3-Jaw Chuck for heavy metal shafts, pipes, and irregular flanges requiring rigid, high-torque clamping.
Q2: How do I engrave inside and outside of rings without scratching precious metals?
A: Use a Jewelry Finger Rotary (Items [12], [13], [23]). Its stepped brass pins expand inside the ring to mark the outer band, or grip the outer rim to mark inner hallmarks (Au750, Pt950), leaving zero mechanical clamp marks.
Q3: How does the Indexing Turntable (Item [17]) increase production efficiency?
A: The turntable rotates automatically between laser cycles, allowing the operator to safely load and unload finished parts on Station 2 while the laser is actively marking Station 1, boosting daily output by 300%–500%.
