1. Safety Protocols & Required Tools Before Alignment
CRITICAL SAFETY WARNING: Aligning an invisible infrared CO2 laser beam (10.6μm) poses severe eye and burn hazards. Always wear OD6+ 10,600nm certified laser safety goggles during the entire alignment procedure.
Required Tools & Preparations:
- Masking Tape / Thermal Paper: Double-sided masking tape or standard thermal receipt paper (produces crisp circular scorch marks at low energy).
- Hex Allen Wrenches: 2.5mm / 3.0mm hex keys for mirror mount adjustment screws.
- Low Pulse Power Setting: Set controller test pulse power to 10% – 15% with a pulse duration of 0.05 – 0.10 seconds (just enough to leave a pinpoint brown dot on the tape without piercing).
- Water Chiller Active: Ensure the industrial water chiller is running with water temperature between 18°C and 24°C.

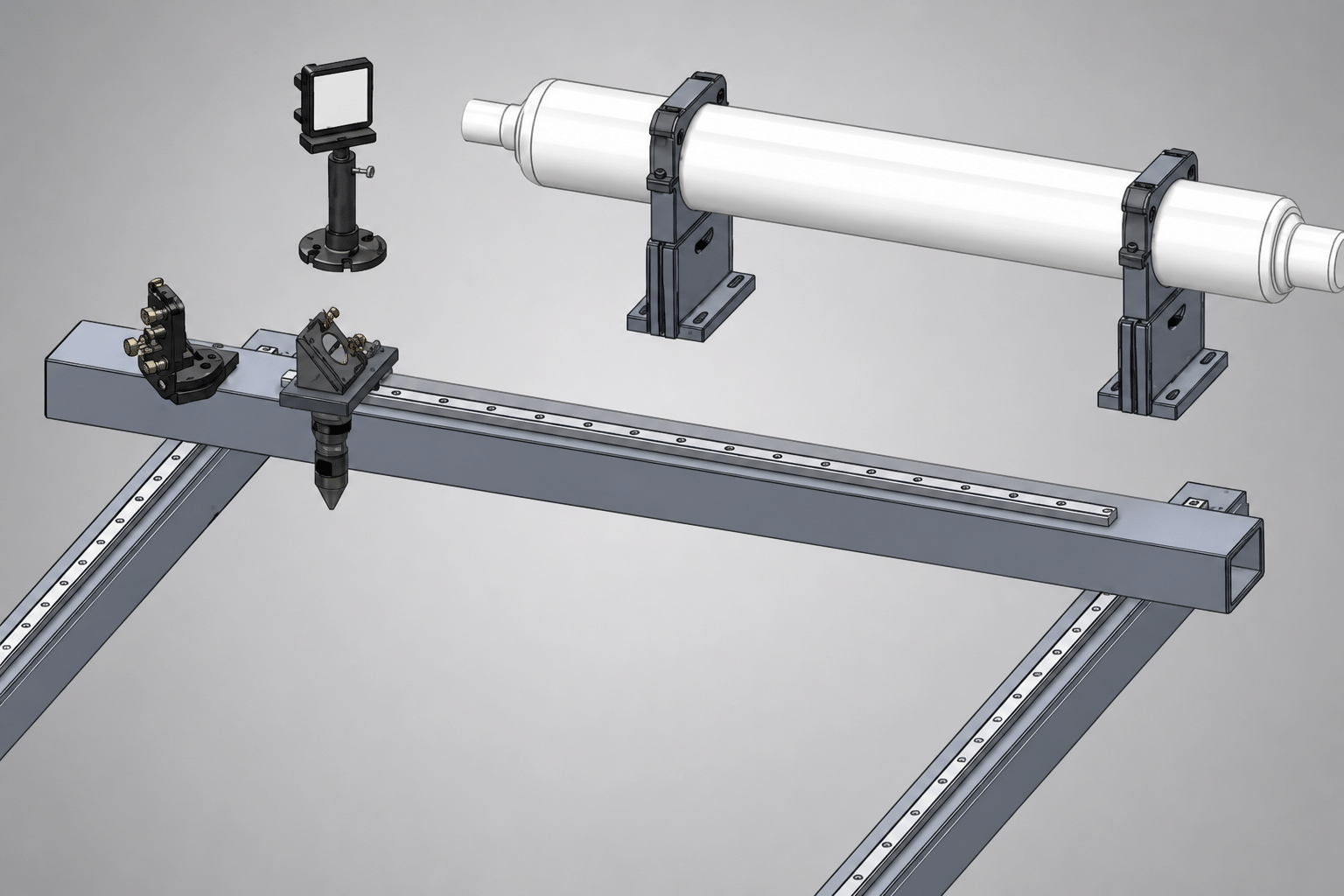

2. Standard 4-Step Optical Alignment SOP
Step 1: Laser Tube to 1st Mirror (Fixed Corner)
Objective: Ensure the raw beam from the laser tube hits the center of Mirror 1 at a clean 45° angle.
- Stick a piece of masking tape over the entrance aperture of Mirror 1.
- Press the Pulse button. The laser dot should land dead-center in the hole.
- If offset, adjust the height or lateral position of the laser tube brackets (do not adjust mirror screws yet).
Step 2: 1st Mirror to 2nd Mirror (Y-Axis Near vs. Far Point Coincidence)
Objective: Ensure the beam parallelizes along the Y-axis guide rail across the entire bed length.
- Move the Y-axis gantry to the Near Point (closest to Mirror 1). Stick tape over Mirror 2’s entrance ring and pulse to leave Dot A.
- Move the Y-axis gantry to the Far Point (farthest from Mirror 1). Stick a fresh piece of tape over Mirror 2 and pulse to leave Dot B.
- The 2-Point Coincidence Rule: Adjust the three copper thumb screws on Mirror 1 mount until Dot B lands exactly on top of Dot A. (Key Principle: We care about Dot A and Dot B perfectly overlapping across the full travel).
Step 3: 2nd Mirror to 3rd Mirror (X-Axis Left vs. Right Point Coincidence)
Objective: Ensure the beam parallelizes along the X-axis carriage guide rail across the entire gantry width.
- Move the laser cutting head to the Near Point (left side, closest to Mirror 2). Stick tape over Mirror 3’s target ring and pulse to leave Dot C.
- Move the laser head to the Far Point (far right side of the gantry). Stick tape over Mirror 3 and pulse to leave Dot D.
- Adjust the three thumb screws on Mirror 2 mount until Dot D overlaps 100% identically with Dot C.
Step 4: 3rd Mirror into Focus Lens & Nozzle Verticality (Center Drop)
Objective: Ensure the beam enters the center of the focus lens perpendicularly (90° verticality), exiting the nozzle tip without clipping the inner nozzle wall.
- Stick tape directly over the bottom opening of the brass nozzle cone.
- Pulse the laser briefly at low power. Inspect the exit hole on the tape: the pinpoint dot must be located in the exact center of the round nozzle orifice.
- If the dot is off-center or crescent-shaped, the beam is clipping the inner cone wall. Adjust the three top screws on Mirror 3 mount to tilt the beam vertically until the exit dot is perfectly centered.
3. Video Tutorial: Step-by-Step Practical Demonstration
Watch the complete official technician walkthrough demonstrating mirror screw adjustments, tape burn testing, and nozzle centering:
4. Comprehensive Troubleshooting Matrix for Common Optical Faults
| Symptom / Fault | Root Cause | Engineering Solution |
|---|---|---|
| Power drops significantly in bottom-right corner of bed | Near/Far beam points on Y or X axis do not coincide (non-parallel beam path) | Re-calibrate Step 2 (Mirror 1 screws) and Step 3 (Mirror 2 screws) until near/far spots overlap 100%. |
| Laser cuts with a slanted bevel / asymmetric kerf | Beam enters the focus lens at an angle or clips the nozzle wall | Perform Step 4: Adjust Mirror 3 verticality screws until the beam exits the center of the nozzle cone. |
| Double spot / ghosting during acrylic cutting | Beam is reflecting off the inner nozzle wall or mirror is cracked/loose | Remove nozzle cone to inspect for internal burn marks; clean or replace dirty/chipped ZnSe focus lens or Mo mirrors. |
| Focus lens keeps cracking / burning repeatedly | Dirty air assist stream (oil/water contamination) or severe beam clipping | Install a dual-stage oil-water air filter separator; verify beam center exit through nozzle. |
| Laser tube fires purple glow inside but no beam exits mirror 1 | Cracked output coupler mirror in laser tube or severe mirror 1 misalignment | Inspect laser tube front window; verify tube bracket alignment directly in front of mirror 1. |
5. Maintenance & Optical Cleaning Schedule
- Daily: Inspect the bottom face of the ZnSe focus lens for smoke residue; clean with spectroscopic-grade anhydrous isopropyl alcohol (99.8%) and lens tissue.
- Weekly: Clean the surfaces of Mirror 1, Mirror 2, and Mirror 3 using single-swipe rotary wiping motion.
- Monthly: Check tightening screws on all mirror mount bases to prevent vibration-induced drift during high-speed gantry acceleration.
