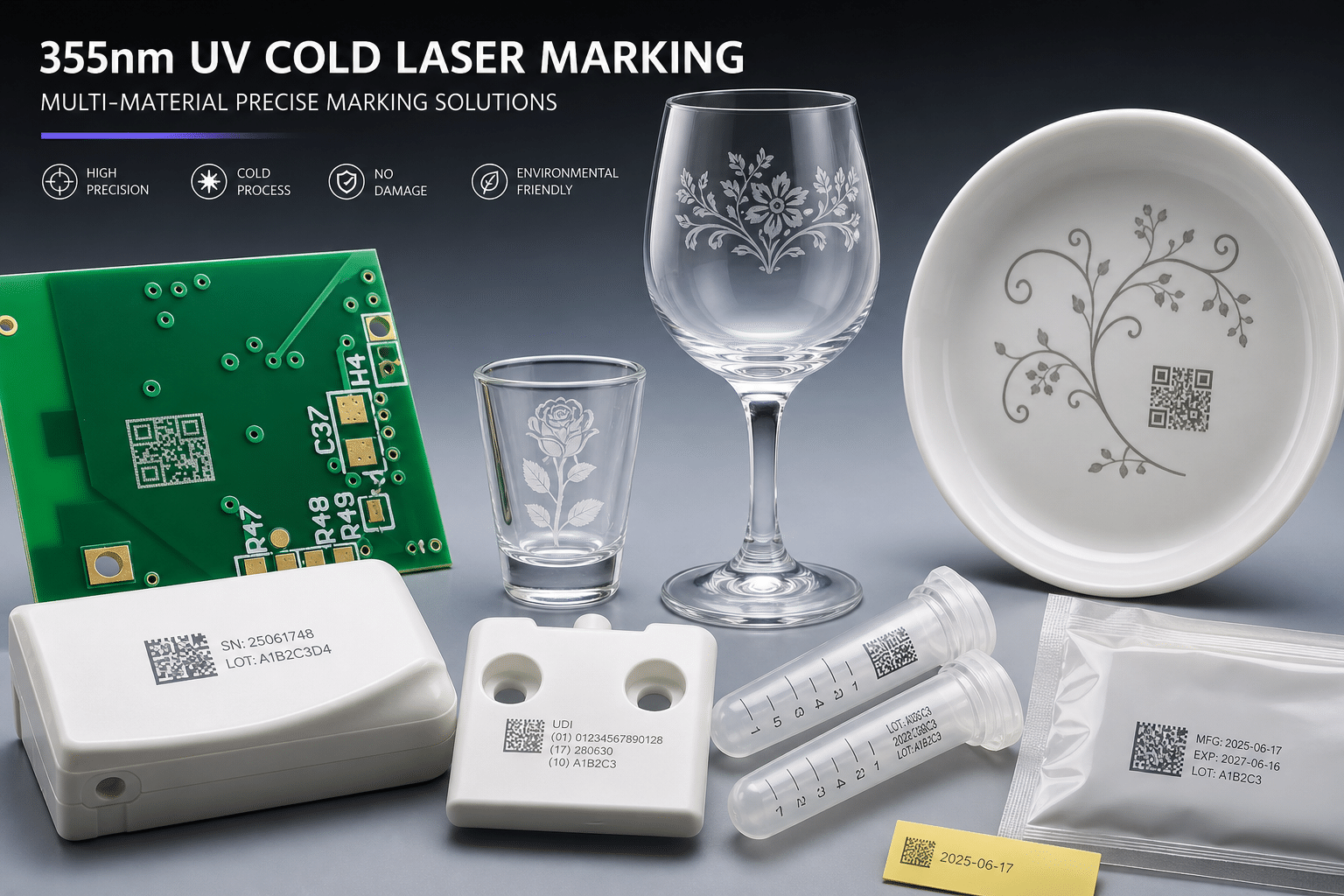

1. Introduction: Photochemical “Cold Marking” vs. Thermal Processing
Ultraviolet (UV) laser marking machines operate at a 355nm wavelength in the ultraviolet spectrum, generated through third-harmonic generation (THG) from a 1064nm DPSS source.
Unlike Fiber (1064nm) and CO2 (10.6μm) lasers that rely on intense thermal ablation (melting, burning, or vaporizing the material), UV lasers utilize photochemical interaction. High-energy ultraviolet photons directly break chemical bonds at the molecular level with minimal thermal transfer.
Key Advantages of 355nm Cold Laser Marking:
- Zero Thermal Damage (Negligible HAZ): Eliminates thermal stress, micro-cracking, foaming, and carbonization.
- Ultra-Fine Focal Spot (< 15μm): Enables micro-machining, sub-millimeter 2D DataMatrix codes, and intricate micro-lettering.
- High Absorption Across Difficult Substrates: Extremely high absorption rate across white polymers, colored plastics, semiconductor silicon, and high-reflectivity materials.
For a broader comparative analysis across all laser wavelengths, refer to the Fiber, CO2, and UV Laser Marking Machine Selection Guide.
2. Substrate Feasibility & Parameter Interaction Matrix
The 355nm ultraviolet photon energy interacts with sensitive substrates through specialized photochemical discoloration:
| Substrate Material | Interaction Mechanism | Mark Characteristics | Recommended UV Power |
|---|---|---|---|
| White ABS / PC Plastics | Photochemical color change | High-contrast dark grey / black, zero deformation | 3W – 5W |
| High-Density Polyethylene (HDPE / PP) | Molecular photochemical alteration | Crisp contrast without burning or burrs | 5W |
| Medical Pebax / TPU Tubing | Selective pigment activation | Indelible, biocompatible surface mark | 3W – 5W |
| Soda-Lime & Borosilicate Glass | Micro-surface photon disruption | Smooth, frosted mark without micro-fractures | 5W – 10W |
| PET Bottles & Thin Packaging Film | Controlled surface opacity | Crisp vector coding with zero puncture risk | 3W – 5W (High Speed) |
| Silicon Wafers & Ceramics (Al2O3) | Direct bond breaking | Micro-machined line width (< 20μm), no chip stress | 5W – 10W |
| Flame-Retardant Polymers (UL94-V0) | Pigment photochemical shift | Sharp contrast without smoke residue | 5W |
| Gold / Silver / Copper Plating | High photon absorption | Fine etching with zero thermal heat-bleed | 5W – 15W |
3. UV Laser Power Selection: 3W vs. 5W vs. 10W vs. 15W
- 3W UV Laser: The standard for static marking of 3C electronic plastics (chargers, earphone cases), cosmetic containers, and basic medical plastic components where cycle time is flexible.
- 5W UV Laser (Industrial Workhorse): The most versatile configuration for industrial manufacturing. Delivers higher peak power and faster scanning speeds (up to 7,000 mm/s) for automated flying packaging lines and glass marking.
- 10W – 15W High-Power UV Laser: Engineered for high-speed automated production lines, glass cutting/drilling, semiconductor wafer scribing, and high-density PCB processing.
4. Industry-Specific Applications & Compliance
A. Medical Devices & UDI Traceability (FDA & MDR Compliance)
Medical grade catheters, surgical tools, syringes, and implants require non-toxic, non-corrosive, and permanent identification. UV lasers produce sterile, acid-resistant marks without disrupting the surface integrity or introducing foreign inks.
B. 3C Consumer Electronics & Micro-Components
Micro-chips, USB connectors, PCB substrates, and optical components require legible DataMatrix codes in areas under 2×2mm. The sub-15μm spot size of a 355nm UV laser ensures 100% barcode readability under industrial vision scanners.
C. Cosmetic & Pharmaceutical Glass Container Coding
Marking lot codes and anti-counterfeiting micro-text directly onto fragile perfume bottles, ampoules, and vials without risking micro-cracks or container vacuum breaches.
Review our integrated UV Laser Marking Machine Series for benchtop, enclosed, and automated inline configurations.
5. Frequently Asked Questions (FAQ)
Q1: What is the main difference between UV cold marking and MOPA fiber laser marking on plastics?
A: MOPA fiber lasers adjust pulse width to achieve high-contrast marks on certain plastics through controlled thermal foaming, but still generate localized heat. UV lasers operate via photochemical bond breaking (cold processing), producing zero surface swelling, which is critical for medical and ultra-thin substrates.
Q2: What is the expected lifespan of a DPSS UV laser source?
A: Industrial DPSS UV laser sources have an optical crystal lifespan of approximately 15,000 to 20,000 hours. Maintaining a clean optical path and stable chiller operating temperatures (22°C–25°C) ensures maximum crystal longevity.
Q3: Why does a UV laser require water cooling instead of air cooling?
A: UV laser generation relies on nonlinear optical crystals (THG) whose conversion efficiency is sensitive to temperature fluctuations. A closed-loop precision water chiller maintains ±0.1°C stability to prevent power degradation and beam mode distortion (TEM00, M² < 1.2).
Q4: Can a UV laser cut thin metals or glass?
A: Yes. High-power UV lasers (10W–15W) can cut thin metallic foils, flexible PCB substrates (FPC), and micro-drill borosilicate glass with clean, burr-free edges.
Q5: Can UV laser marks be rubbed off by alcohol or sterilization autoclaves?
A: No. Because the mark is formed by molecular structural alteration rather than surface ink deposition, UV laser markings withstand ultrasonic cleaning, autoclave sterilization, and chemical wipe-downs.
6. Pre-Purchase Sample Testing & Optical Evaluation
Due to subtle chemical variations across polymer additives and glass compositions, empirical laboratory testing is essential:
- Microscopic beam contrast and line definition verification
- Thermal distortion and surface roughness measurement (Ra)
- Cycle time benchmarking under continuous production line speeds
