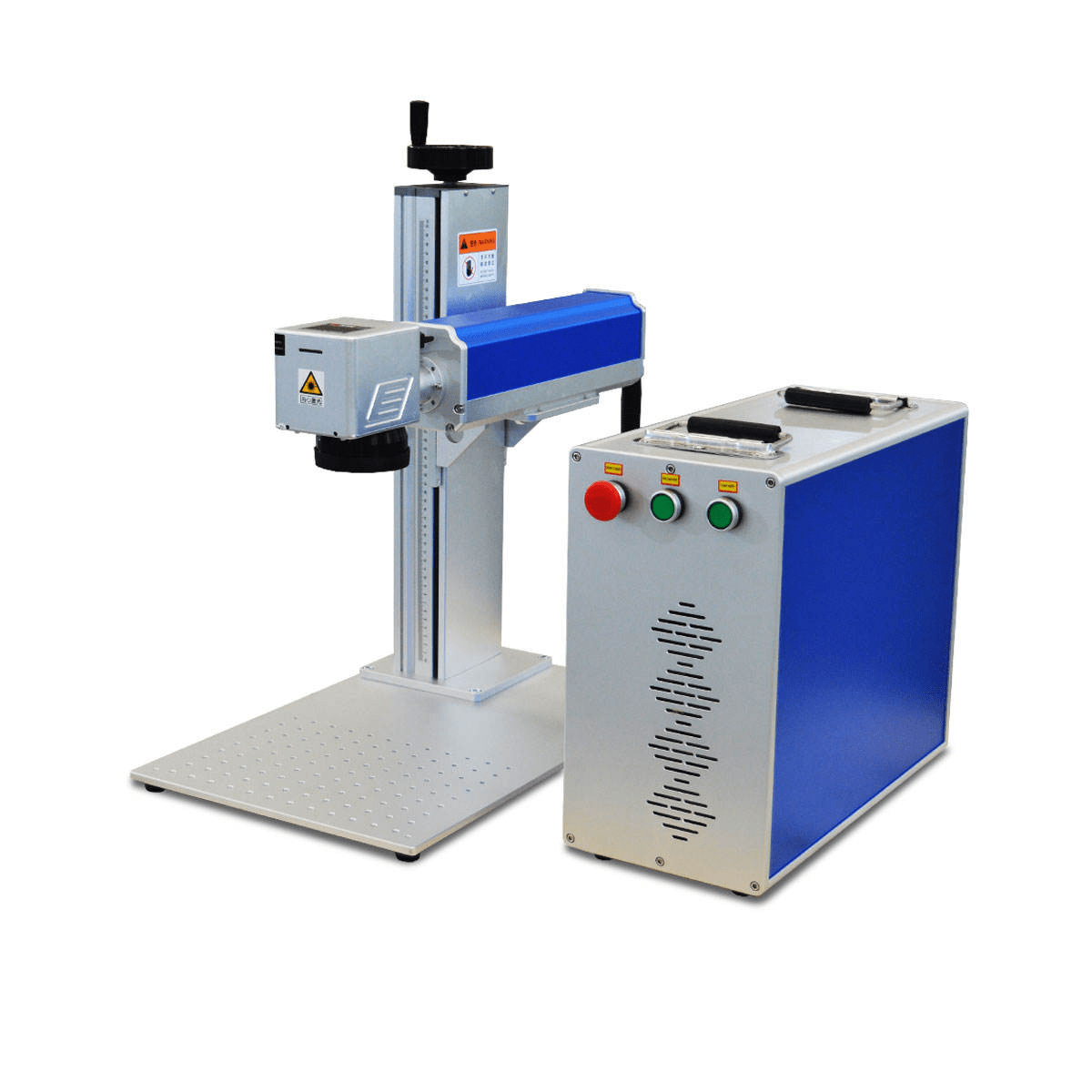

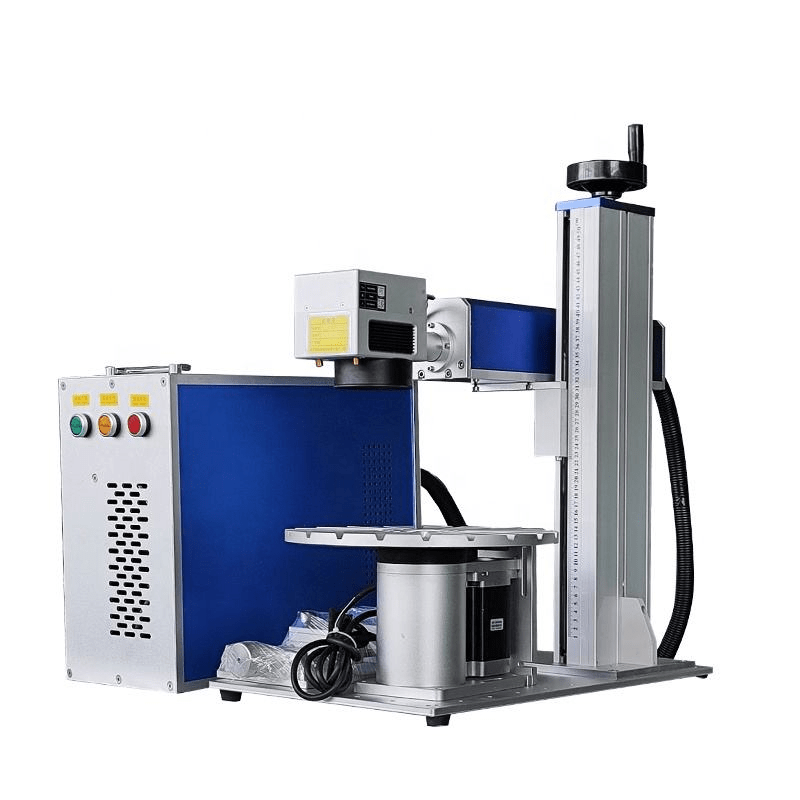

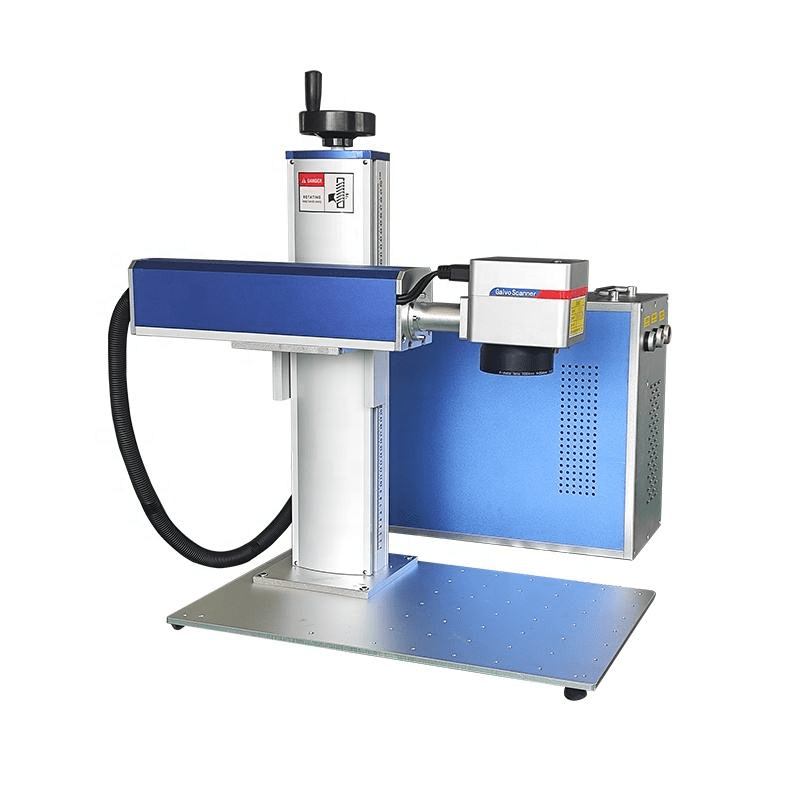

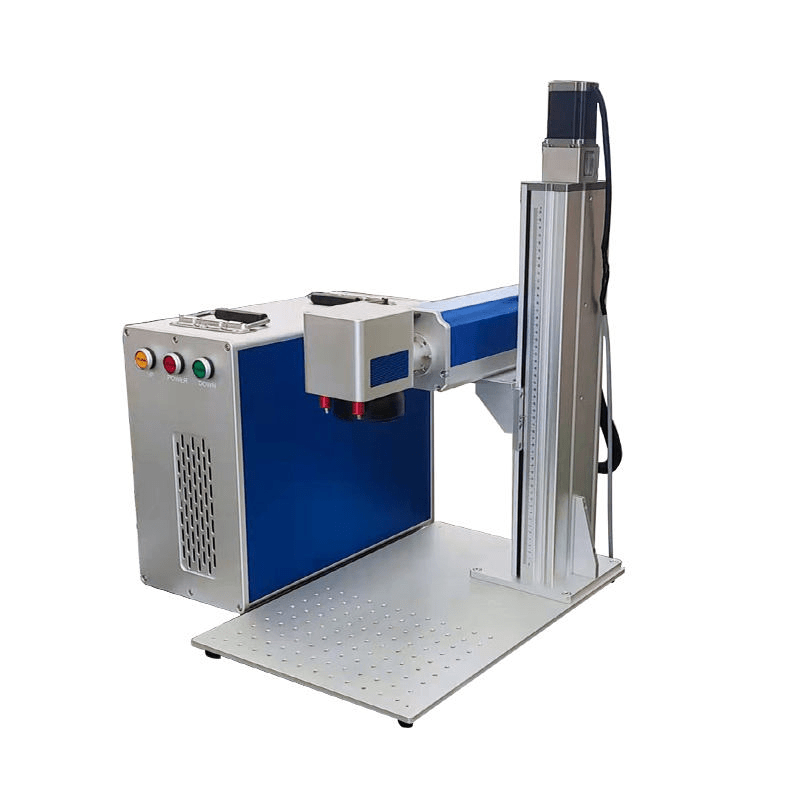

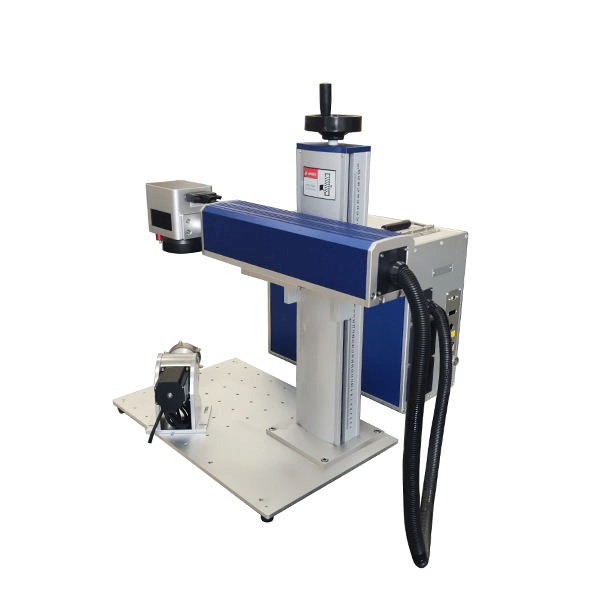

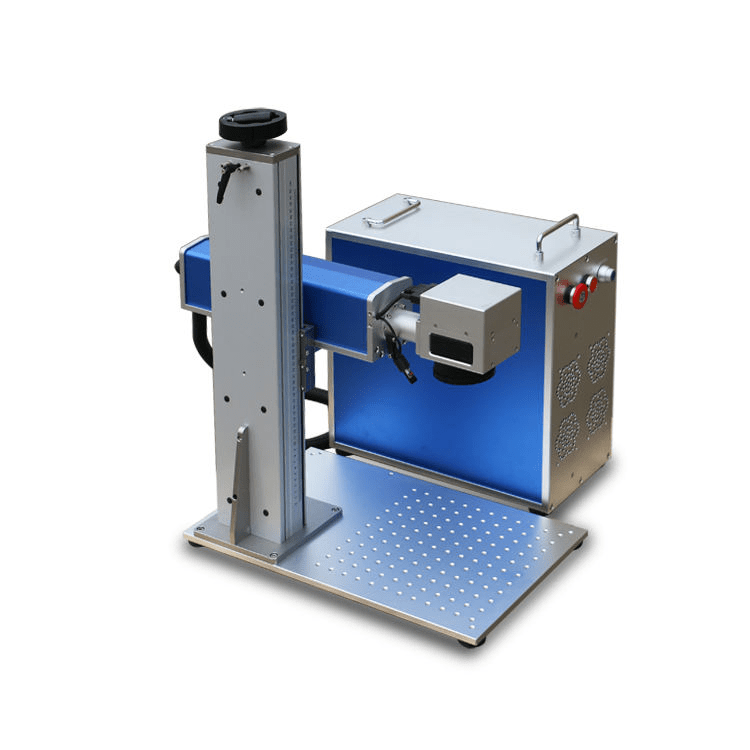

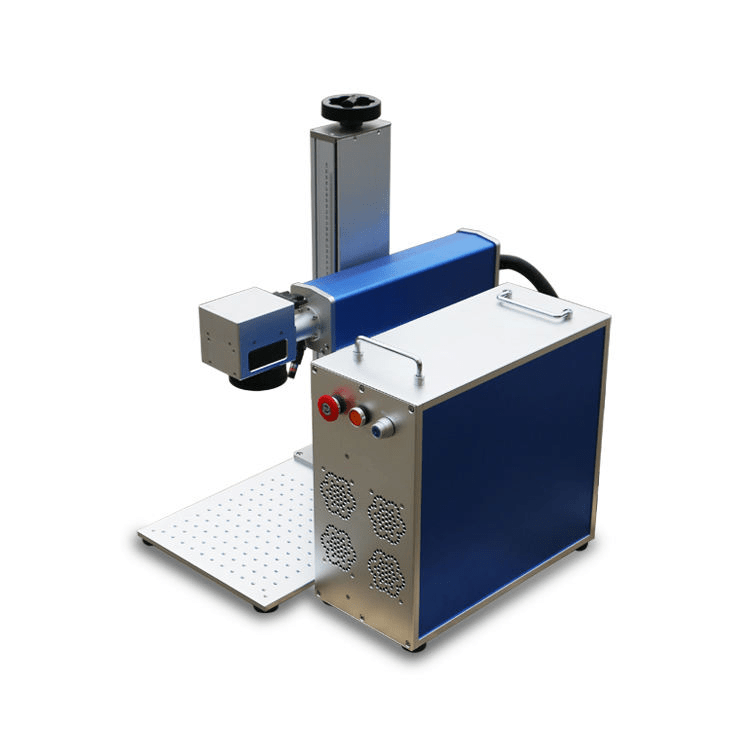

MOPA Laser Marking Machine 30W/60W/100W/200W/300W for Industrial Marking

Product Overview

The MOPA laser marking machine represents a significant advancement in fiber laser technology, offering pulse-tunable capabilities that deliver exceptional marking precision across a wide range of materials. Available in 30W, 60W, 100W, 200W, and 300W power configurations, this JPT MOPA laser marking machine combines superior beam quality (m2<1.5) with precisely adjustable pulse width and repetition frequency, enabling operators to achieve the ideal marking parameters for each specific application. Whether performing high-contrast color marking on stainless steel, black marking on anodized aluminum, or high-speed serialization on plastics and coated materials, this pulse-tunable fiber laser system delivers burr-free, non-scorched results with outstanding repeat accuracy of ±0.001mm. The air-cooled, maintenance-free design ensures reliable long-term operation in both standalone and production-line environments. The fiber laser marking machine supports marking fields from 110×110mm to 200×200mm, accommodating a broad range of workpiece sizes.

Technical Specifications

Product Features

Pulse-Tunable MOPA Technology

Unlike traditional Q-switched fiber lasers, the MOPA architecture allows independent adjustment of pulse width and repetition frequency. This precise control enables the MOPA laser marking machine to deliver the optimal pulse energy profile for each material, from nanosecond pulses for fine marking on heat-sensitive plastics to longer pulses for deep engraving on metals. The result is superior mark quality with minimal heat-affected zones and no material deformation. This flexibility is the defining advantage of the MOPA fiber laser marker over conventional laser sources.

Multiple Power Options from 30W to 300W

The MOPA laser marking machine is available in five power levels — 30W, 60W, 100W, 200W, and 300W — allowing buyers to select the output that matches their production throughput requirements. Lower-power models excel at fine marking of thin materials and sensitive electronic components, while higher-power variants deliver rapid deep engraving and high-speed production-line marking without sacrificing edge quality. The 300W configuration provides the highest throughput for industrial-scale marking operations, making this fiber laser marking machine suitable for both small workshops and large manufacturing facilities.

Color Marking and Black Marking Capability

A standout feature of this JPT MOPA laser marking machine is its ability to produce color marking on stainless steel and other metals by precisely controlling the oxide layer thickness through pulse parameters. On anodized aluminum, it achieves crisp black marking without damaging the substrate surface. These capabilities eliminate the need for secondary painting or chemical etching processes, reducing both production time and environmental impact. Color marking with a MOPA fiber laser marker has become a sought-after capability in industries where aesthetic identification adds product value.

Superior Beam Quality and Precision

With beam quality of m2<1.5 and a minimum line width of 0.01mm, this MOPA laser marking machine produces exceptionally fine and consistent marks. The repeat accuracy of ±0.001mm ensures that batch production maintains identical marking positions, critical for applications such as electronic component serialization, medical device traceability, and precision part identification. The 1060nm wavelength produces a tightly focused spot that delivers high energy density at the workpiece surface, enabling the pulse-tunable fiber laser to achieve marks that remain legible through subsequent manufacturing processes.

Maintenance-Free Air-Cooled Design

The fully air-cooled system eliminates the need for external chillers or coolant maintenance, reducing total cost of ownership. Combined with a maintenance-free laser source, the MOPA fiber laser marking machine offers long service life and reliable 24/7 operation in industrial environments. Standard 220V/50Hz/10A single-phase power simplifies installation and integration into existing production lines without requiring three-phase electrical upgrades.

Comprehensive Standard Accessories

Each MOPA laser marking machine ships with a complete set of optical components for immediate setup: fiber cable, F-theta lens (field lens), beam expander, and reflective mirror. These accessories ensure optimal beam delivery and focus quality across the full marking field from 110×110mm to 200×200mm, allowing the operator to achieve consistent results from the first production run. The included F-theta lens compensates for field curvature, maintaining uniform spot size across the entire marking area.

Business Value

Reduced Operating Costs Through Maintenance-Free Operation

The air-cooled design and maintenance-free laser source significantly lower ongoing operational expenses for any facility operating this fiber laser marking machine. There are no consumable cooling fluids to replace and no chiller maintenance contracts required. For wholesale buyers and production facilities running multiple shifts, these savings accumulate rapidly over the machine’s service life, making the MOPA laser marking machine a cost-effective long-term investment.

Versatile Material Processing Eliminates Multiple Machines

One MOPA laser marking machine handles stainless steel, aluminum alloy, copper, brass, plastics, coated materials, and more. This versatility means a single workstation can replace multiple dedicated marking systems, reducing capital expenditure and floor space requirements. The ability to produce both color marks on metals and deep engravings on the same platform further expands its return on investment. For contract manufacturers and OEM suppliers who encounter diverse materials daily, this pulse-tunable fiber laser is a single versatile solution.

High-Speed Throughput for Production Environments

With engraving line speeds up to 12,000 mm/s and repetition rates reaching 100 KHz, this MOPA fiber laser marking machine supports high-volume production requirements. The system integrates seamlessly with automated assembly lines, robotic handling systems, and conveyor-fed marking stations, allowing manufacturers to maintain peak throughput without compromising mark quality. The fast marking speed combined with precise positioning makes this fiber laser marking machine ideal for serialization and batch coding operations.

Consistent Quality for OEM and Contract Manufacturing

The repeat accuracy of ±0.001mm ensures that every part in a production run receives identical marking position and depth. For OEM suppliers and contract manufacturers who must meet strict quality standards and traceability requirements, this consistency translates directly into fewer rejects, less rework, and stronger customer confidence in delivered products. The MOPA fiber laser marker’s ability to maintain parameter stability over extended production runs further reinforces manufacturing reliability.

Scalable Investment from 30W to 300W

The five power options allow buyers to start with a lower-power configuration and upgrade later, or to match each production line with the appropriate power level. An entry-level 30W MOPA laser marking machine suits R&D labs and small-batch production, while the 300W model handles heavy-duty industrial marking. This scalability protects the buyer’s investment as production demands grow.

Applications

Electronic Components and PCB Marking

The MOPA laser marking machine excels at producing ultra-fine marks on small electronic components such as capacitors, resistors, connectors, and integrated circuits. The precise pulse control prevents heat damage to sensitive semiconductor materials while delivering readable serial numbers, date codes, and logos at line widths down to 0.01mm. For PCB manufacturers, the pulse-tunable fiber laser marks solder masks and conformal coatings without carbonization or substrate degradation. The 1060nm wavelength is well absorbed by most electronic packaging materials, ensuring consistent mark contrast across different component types.

Automotive and Hardware Parts Traceability

Auto parts suppliers use this fiber laser marking machine to apply permanent Data Matrix codes, VIN numbers, and component identifiers on engine parts, brake components, chassis hardware, and fasteners. The marks withstand exposure to heat, oil, and mechanical abrasion throughout the vehicle’s service life. Hardware manufacturers benefit from high-speed marking on tools, fittings, valves, and fasteners where permanent identification is required for quality tracking and warranty management. The MOPA laser marking machine’s adjustable pulse parameters allow optimal marking depth control for each specific metal alloy used in automotive production.

Jewelry and Precision Part Marking

In the jewelry industry, the MOPA fiber laser marking machine produces intricate logos, purity stamps, and decorative patterns on gold, silver, platinum, and stainless steel jewelry without mechanical contact or material distortion. Precision part manufacturers mark micro-scale identifiers on medical instruments, watch components, optical parts, and small machined components where mark quality and positional accuracy are critical. The fine beam focus and repeatable positioning of this MOPA laser marking machine make it the preferred tool for high-value item marking.

Medical Device Identification and Traceability

Medical device manufacturers require permanent, biocompatible marking that remains readable throughout the product’s lifetime. This fiber laser marking machine produces UDI codes, lot numbers, and surgical instrument markings on stainless steel surgical tools, titanium implants, and plastic medical housings. The non-contact marking process eliminates contamination risk and preserves sterile barrier integrity. The MOPA laser marking machine’s pulse control prevents heat-induced micro-cracking on medical-grade materials, ensuring marking integrity for regulated medical products.

Packaging and Coated Materials Marking

For consumer goods and industrial packaging, the system marks date codes, batch numbers, and brand logos on coated papers, plastic films, cardboards, and laminated materials. The adjustable pulse parameters of this pulse-tunable fiber laser ensure crisp marks without burning through thin coatings or damaging the substrate — a common challenge with conventional laser markers on sensitive packaging materials.

Tooling and Die Marking

Tool manufacturers use the MOPA laser marking machine to apply permanent identification on cutting tools, dies, molds, and measuring instruments. The marks remain legible after repeated cleaning, sterilization, and high-temperature processes encountered in industrial tooling environments. The ability to mark hardened steel and carbide tooling without mechanical stress preserves the tool’s dimensional accuracy and surface finish.

Why Choose This MOPA Laser Marking Machine

Choosing this MOPA laser marking machine means investing in a system built with proven laser cavity design, precision optical components, and rigorous quality control throughout the manufacturing process. Each machine is configured with the complete set of standard accessories — fiber cable, F-theta lens, beam expander, and reflective mirror — ensuring that the buyer receives a ready-to-operate system with no hidden component requirements. The combination of pulse-tunable MOPA technology, broad power range from 30W to 300W, and maintenance-free air-cooled operation makes this fiber laser marking machine a reliable long-term solution for businesses seeking consistent marking quality across diverse materials and production volumes.

FAQ

Q1: What materials can the MOPA laser marking machine mark?

The MOPA laser marking machine processes stainless steel, aluminum alloy, copper, brass, various plastics, coated materials, anodized aluminum, and many other substrates. The pulse-tunable technology allows the operator to select the optimal parameters for each material type, making this fiber laser marking machine suitable for a broad range of industrial marking tasks.

Q2: Can this machine produce color marks on metal?

Yes, by precisely controlling the pulse width and frequency, the MOPA fiber laser marker generates controlled oxide layers on stainless steel surfaces to produce a range of colors without inks or chemical treatment. The achievable colors depend on the material composition and the selected laser parameters. This color marking capability is a key differentiator of MOPA technology versus standard Q-switched lasers.

Q3: What is the difference between MOPA and Q-switched fiber lasers?

Unlike Q-switched lasers where pulse width is fixed, MOPA technology allows independent adjustment of pulse width and repetition frequency. This flexibility enables optimal marking results across a wider range of materials, including color marking on metals and black marking on anodized aluminum — capabilities not available with standard Q-switched systems. The pulse-tunable fiber laser also produces finer mark details with reduced heat-affected zones.

Q4: What accessories are included with the machine?

Each MOPA laser marking machine ships with a fiber cable, F-theta lens (field lens), beam expander, and reflective mirror as standard accessories. These components provide a complete optical path for immediate marking setup without additional purchases.

Q5: What power options are available?

The MOPA laser marking machine is offered in 30W, 60W, 100W, 200W, and 300W configurations. The 30W and 60W models are suited for fine marking and sensitive materials, while the 200W and 300W variants handle deep engraving and high-speed production-line marking. The 100W model provides a balanced mid-range option for general-purpose industrial marking.

Q6: Does the machine require water cooling?

No, the system uses air cooling exclusively, eliminating the need for external chillers, coolant refills, and associated maintenance. This simplifies installation and reduces ongoing operating costs for this fiber laser marking machine.

Q7: What is the minimum character size the machine can produce?

The MOPA laser marking machine can produce characters as small as 0.05mm with a minimum line width of 0.01mm, making it suitable for ultra-fine marking applications such as electronic component serialization and micro-scale part identification where space is extremely limited.

Q8: Can the system integrate with automated production lines?

Yes, the MOPA fiber laser marking machine supports both static and assembly-line marking configurations. It can be integrated with conveyor systems, robotic arms, and vision-guided positioning for automated, high-throughput production environments.

Q9: What is the beam quality of this laser marking machine?

The system delivers beam quality of m2<1.5, ensuring excellent focus characteristics and consistent mark quality across the entire marking field from 110×110mm up to 200×200mm. This superior beam quality contributes to the fine line width and high repeat accuracy that the MOPA laser marking machine is known for.

Q10: What supply voltage is required?

The MOPA laser marking machine operates on standard 220V / 50Hz / 10A single-phase power, making it compatible with typical industrial and commercial electrical infrastructure without requiring special power upgrades or three-phase service.
