High-Precision Industrial Sheet Metal Fiber Laser Cutting Solution

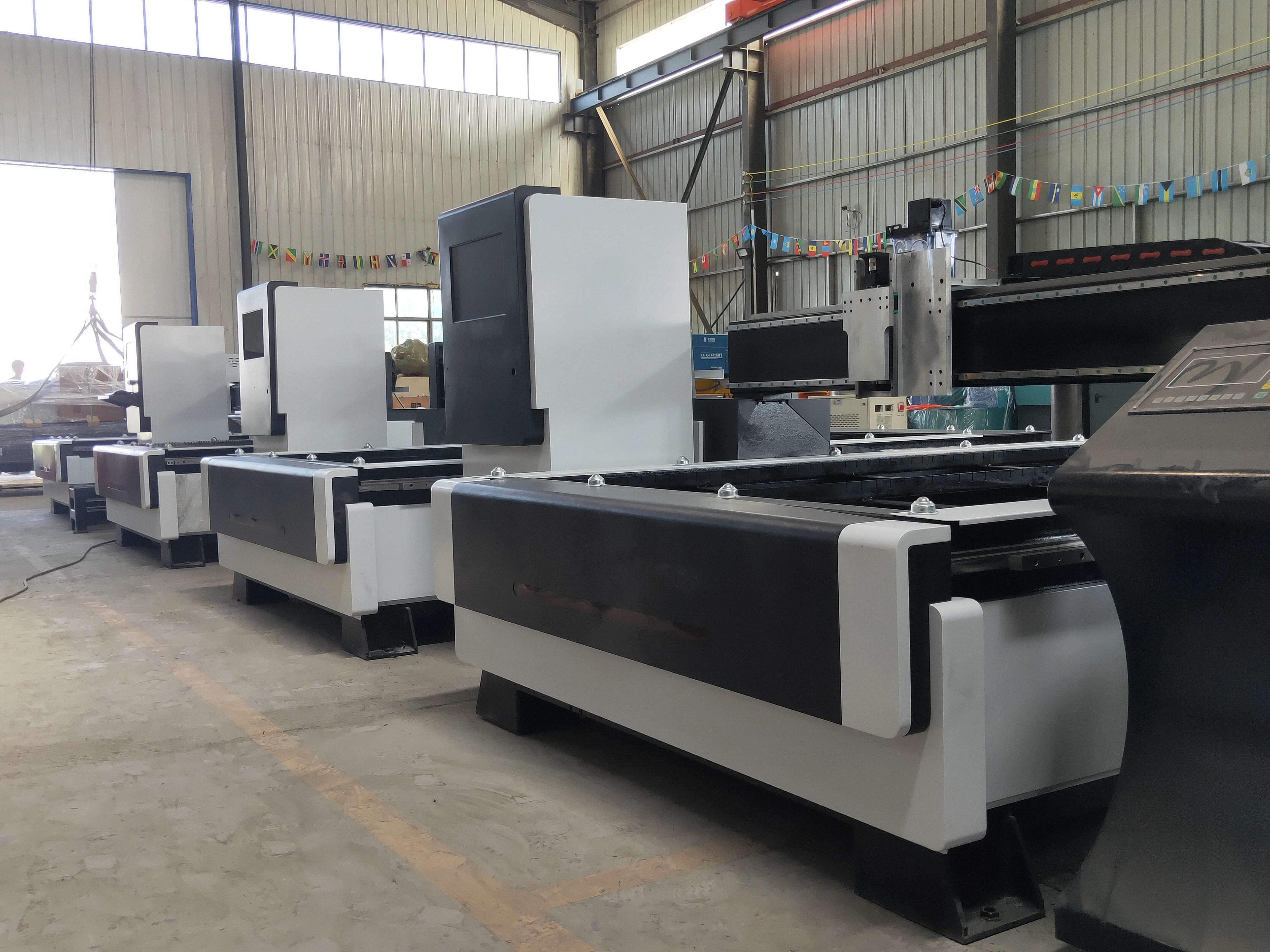

ActionLaser’s Open-Bed Industrial Fiber Laser Cutting Machine is engineered for heavy-duty, high-precision, and continuous sheet metal processing. Combining robust structural damping, precision rack-and-pinion transmission, high-rigidity aviation aluminum gantry, and intelligent CNC control systems, this platform delivers superior edge quality, minimal thermal distortion, and exceptional cost efficiency across carbon steel, stainless steel, aluminum, brass, and copper cutting.
Key Specifications & Highlights
- Laser Power Range: 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W / 12000W / 20000W (Up to 20kW)
- Processing Formats: Sheet metal, tubes and profiles
- Working Formats: 3015 (3000×1500mm) / 4020 (4000×2000mm) / 6025 (6000×2500mm) / Custom Formats (e.g. 8025 / 12025)
- Machine Architecture: Open Bed / Fully Enclosed Dual Shuttle Table / Sheet & Tube Dual-Use Integrated (1-to-2) / Large-Format Ground Rail
- Positioning Accuracy: ±0.03 mm/m | Repeatability: ±0.02 mm
- Max Travel Speed: Up to 120 m/min | Max Acceleration: 1.5G
- Assist Gases: Oxygen (O₂), Nitrogen (N₂), High-Pressure Clean Compressed Air

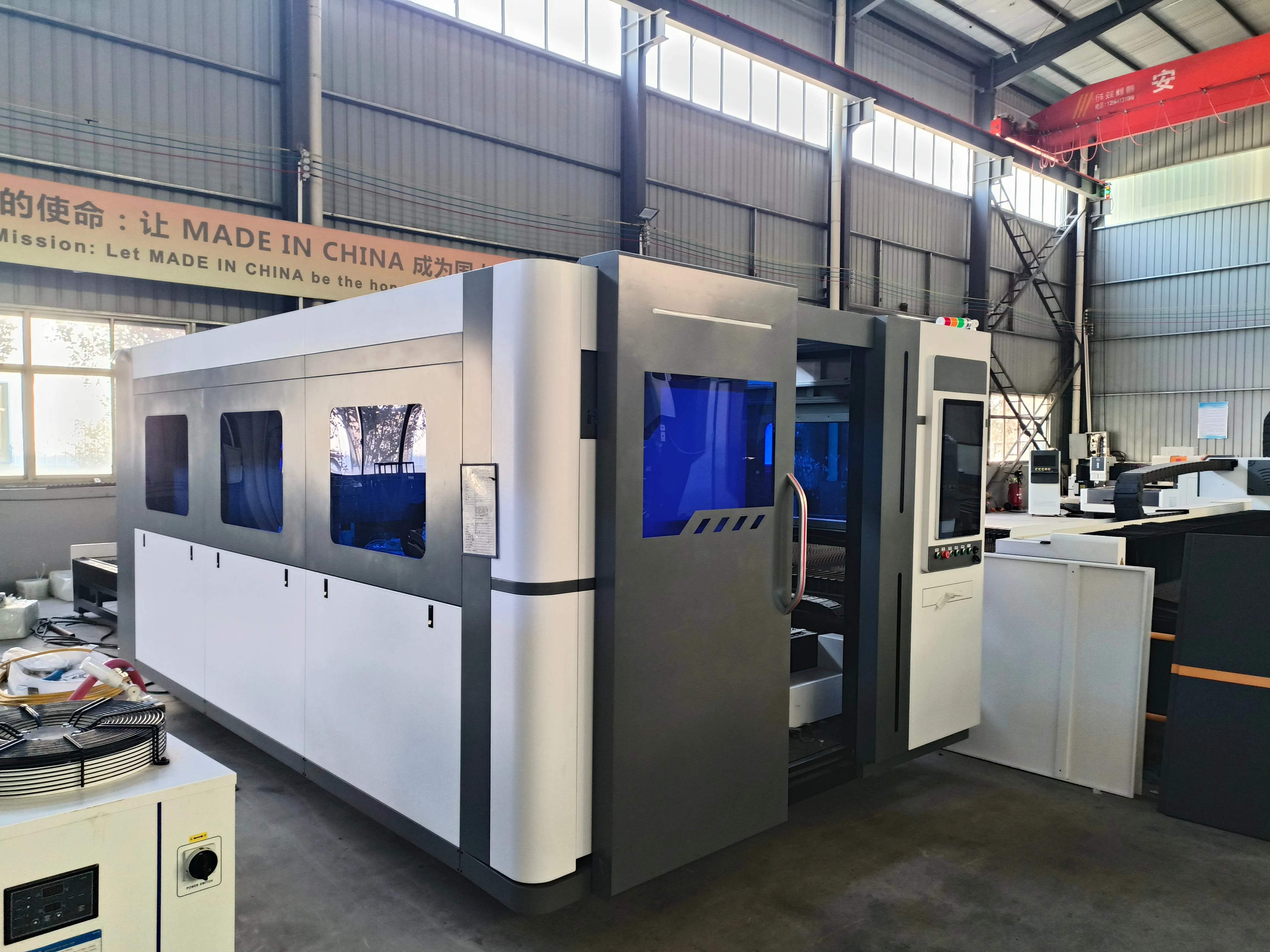

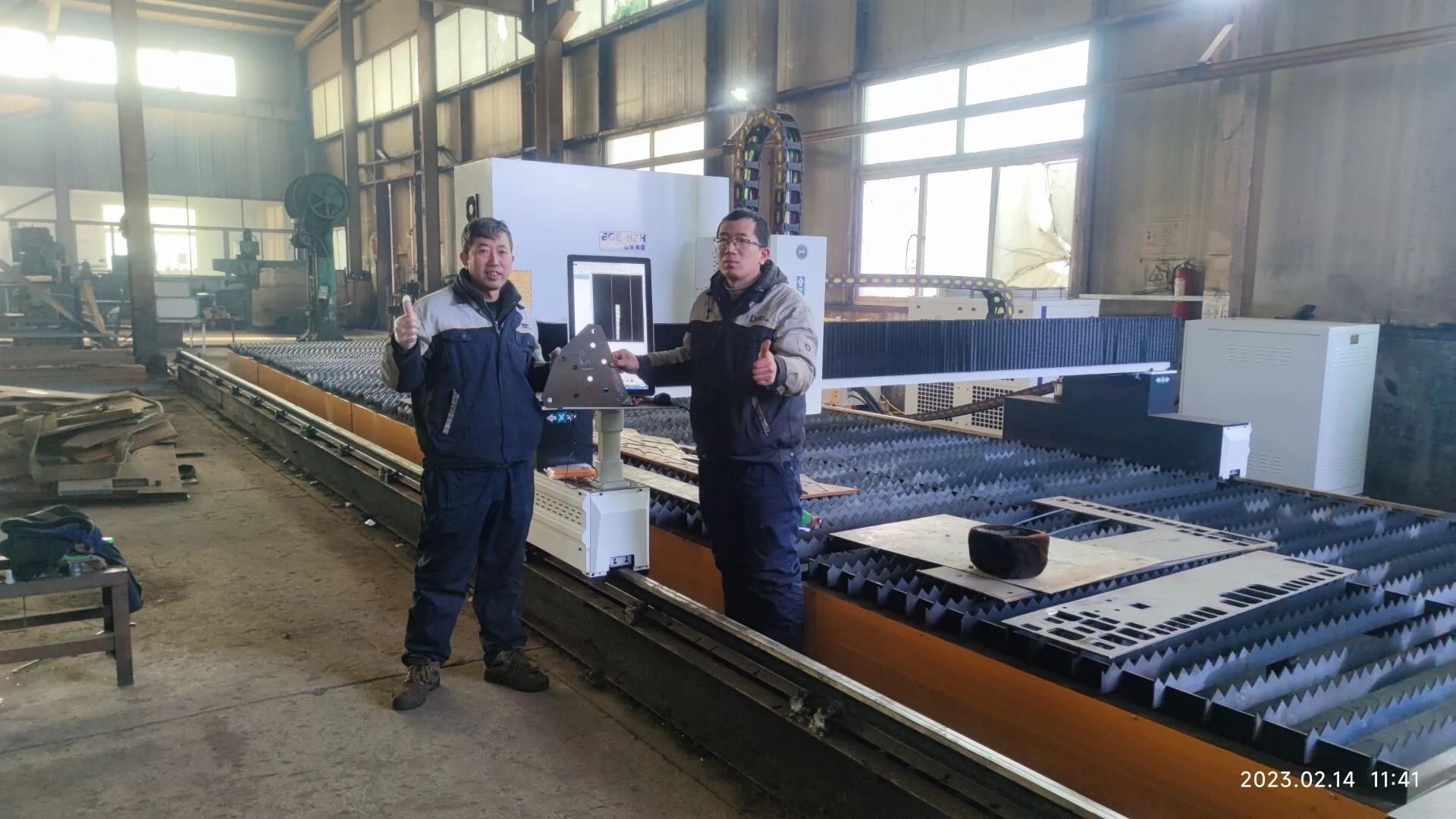

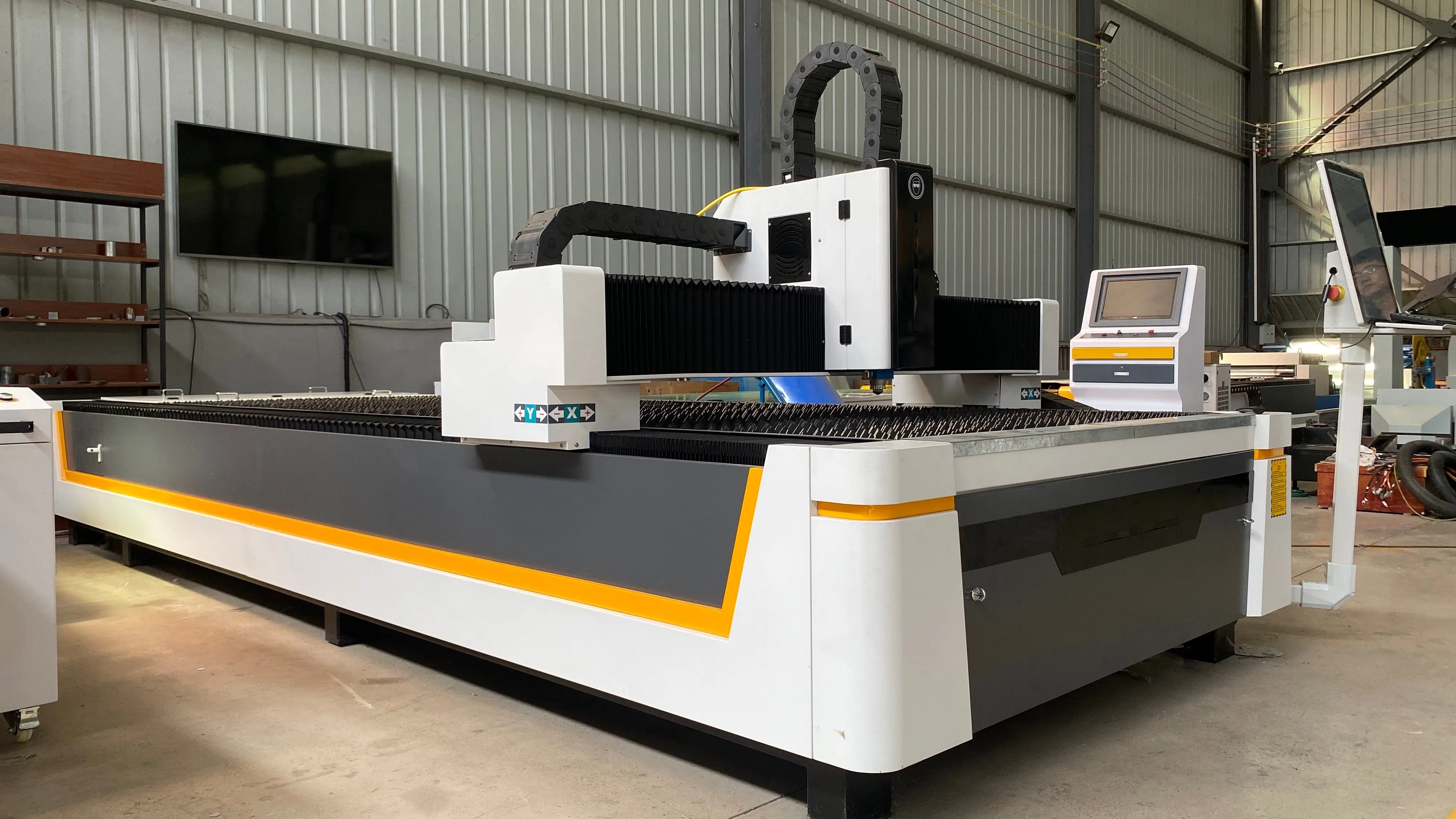

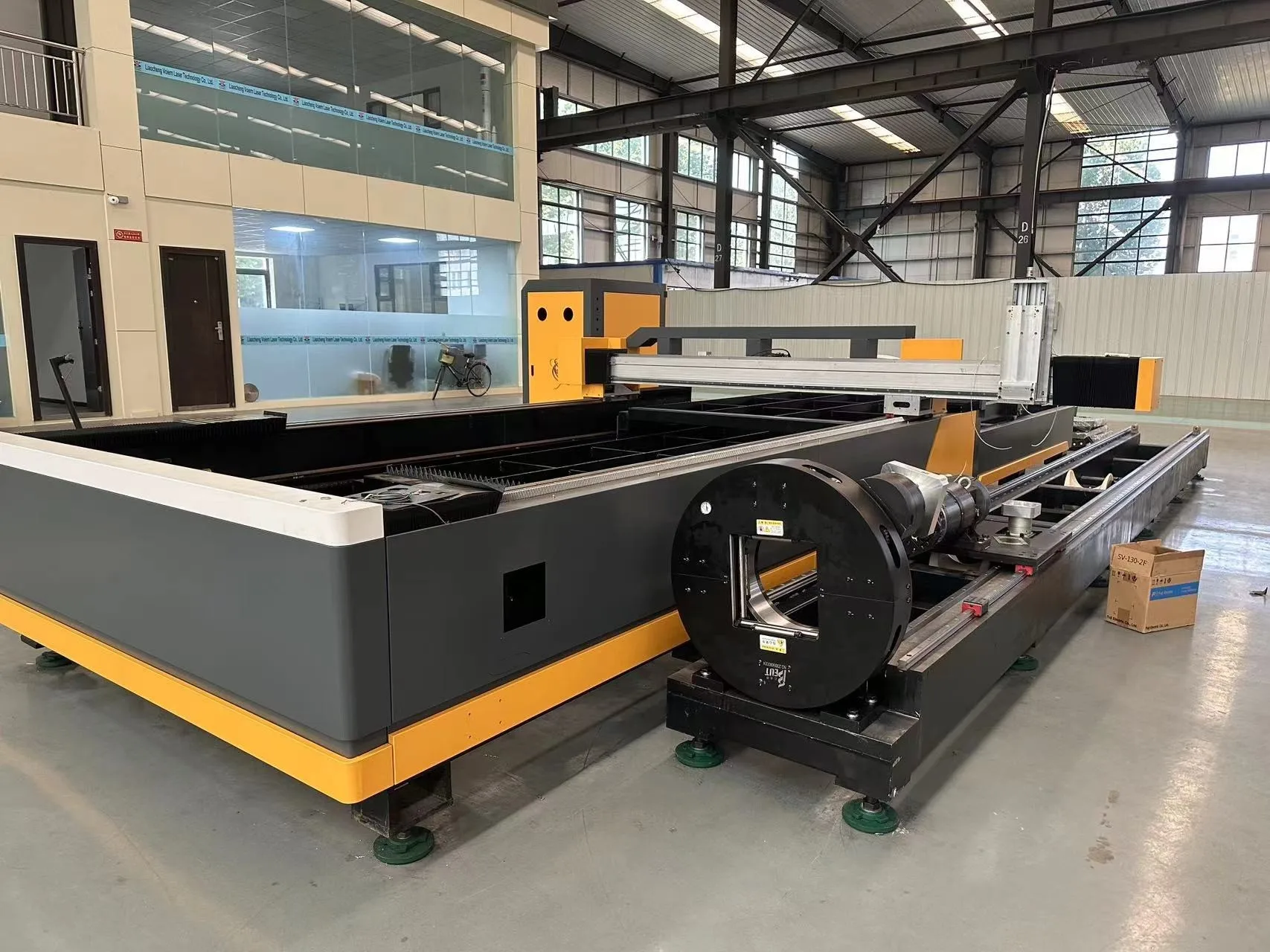

Machine Architecture Options: Single-table Open Bed; Fully Enclosed with Dual Shuttle Table; Sheet & Tube Dual-Use Integrated (1-to-2 Combination); Large Format Open Bed with ground rail.

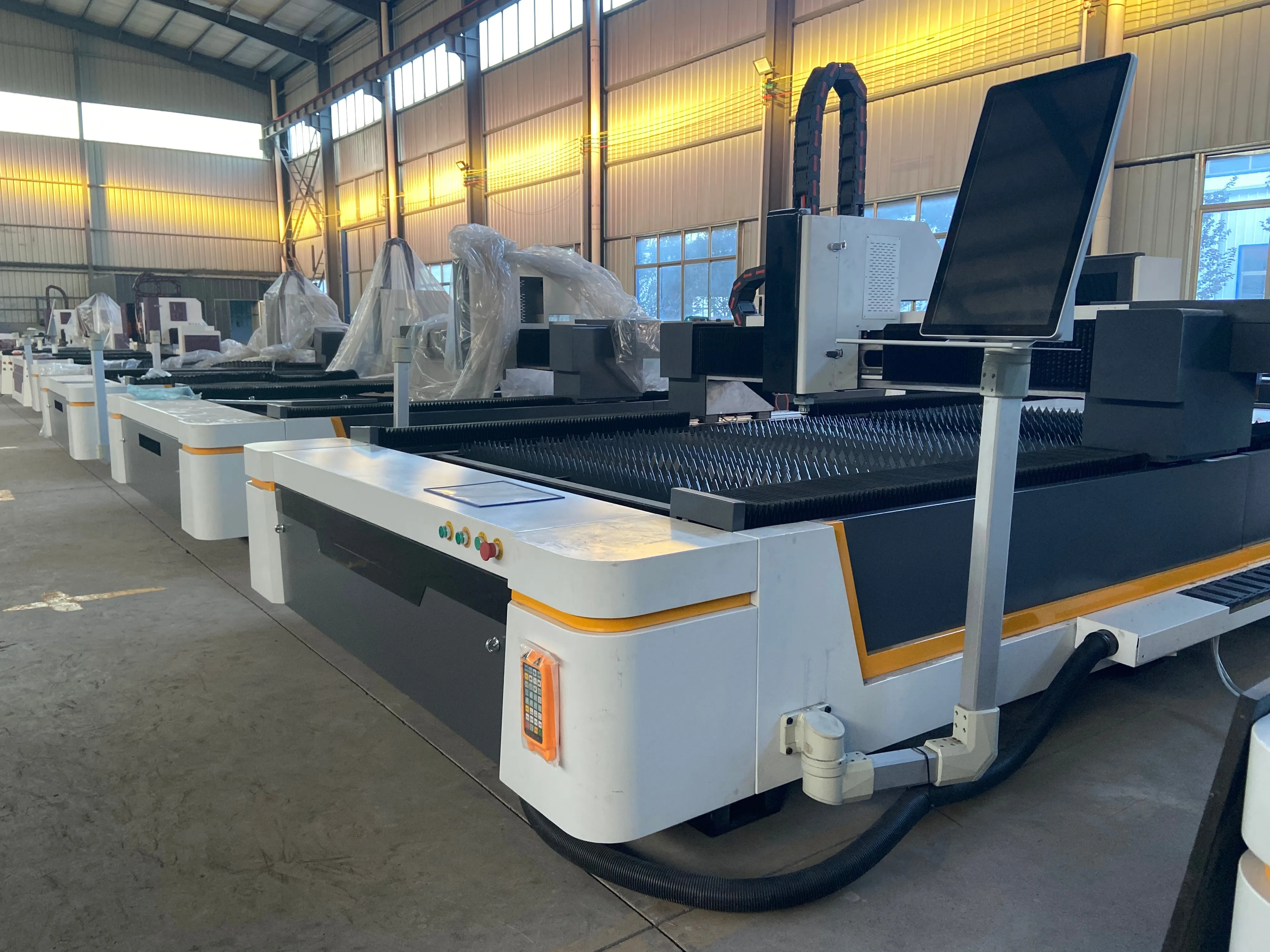

Machine Architecture & Workshop Overview
Live Video Demonstrations
Live Sheet Metal Laser Cutting Demo
High-Speed Precision Contour Cutting
Laser Power vs. Maximum Cutting Thickness (mm)
Laser Power vs. Maximum Cutting Capacity Matrix
| Laser Power | Carbon Steel | Stainless Steel | Aluminum | Brass / Copper |
|---|---|---|---|---|
| 1000W | 14 mm | 8 mm | 4 mm | 4 mm |
| 1500W | 17 mm | 9 mm | 6 mm | 6 mm |
| 2000W | 20 mm | 12 mm | 8 mm | 8 mm |
| 3000W | 26 mm | 15 mm | 12 mm | 12 mm |
| 4000W | 27 mm | 21 mm | 16 mm | 13 mm |
| 6000W | 28 mm | 23 mm | 16 mm | 14 mm |
| 8000W | 28 mm | 25 mm | 17 mm | 14 mm |
| 12000W | 29 mm | 26 mm | 17 mm | 15 mm |
| 20000W (Ultra-High Power) | 50 mm | 40 mm | 35 mm | 25 mm |

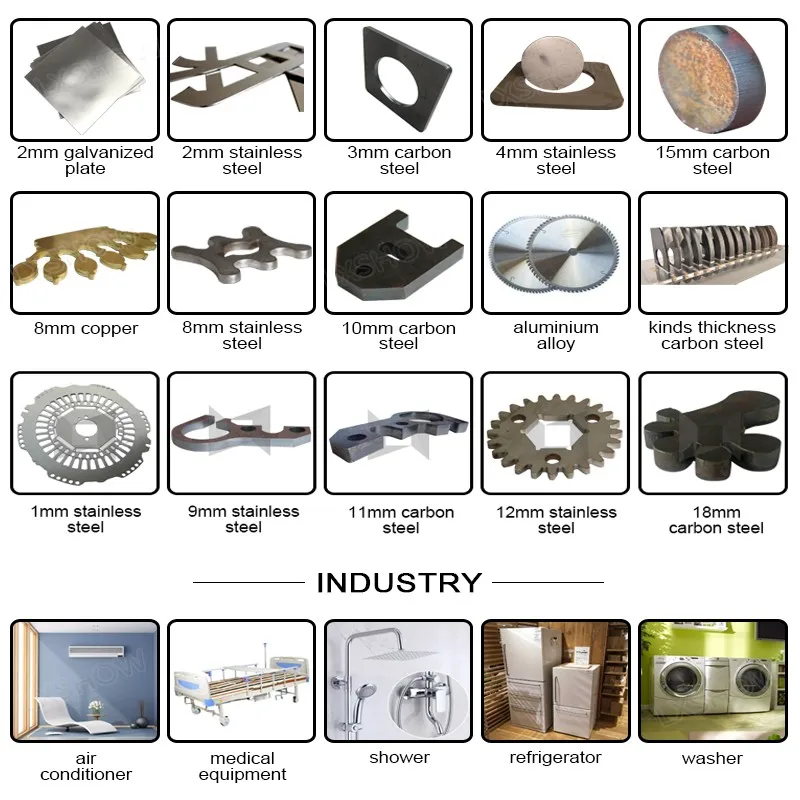

Precision Samples & Industrial Applications

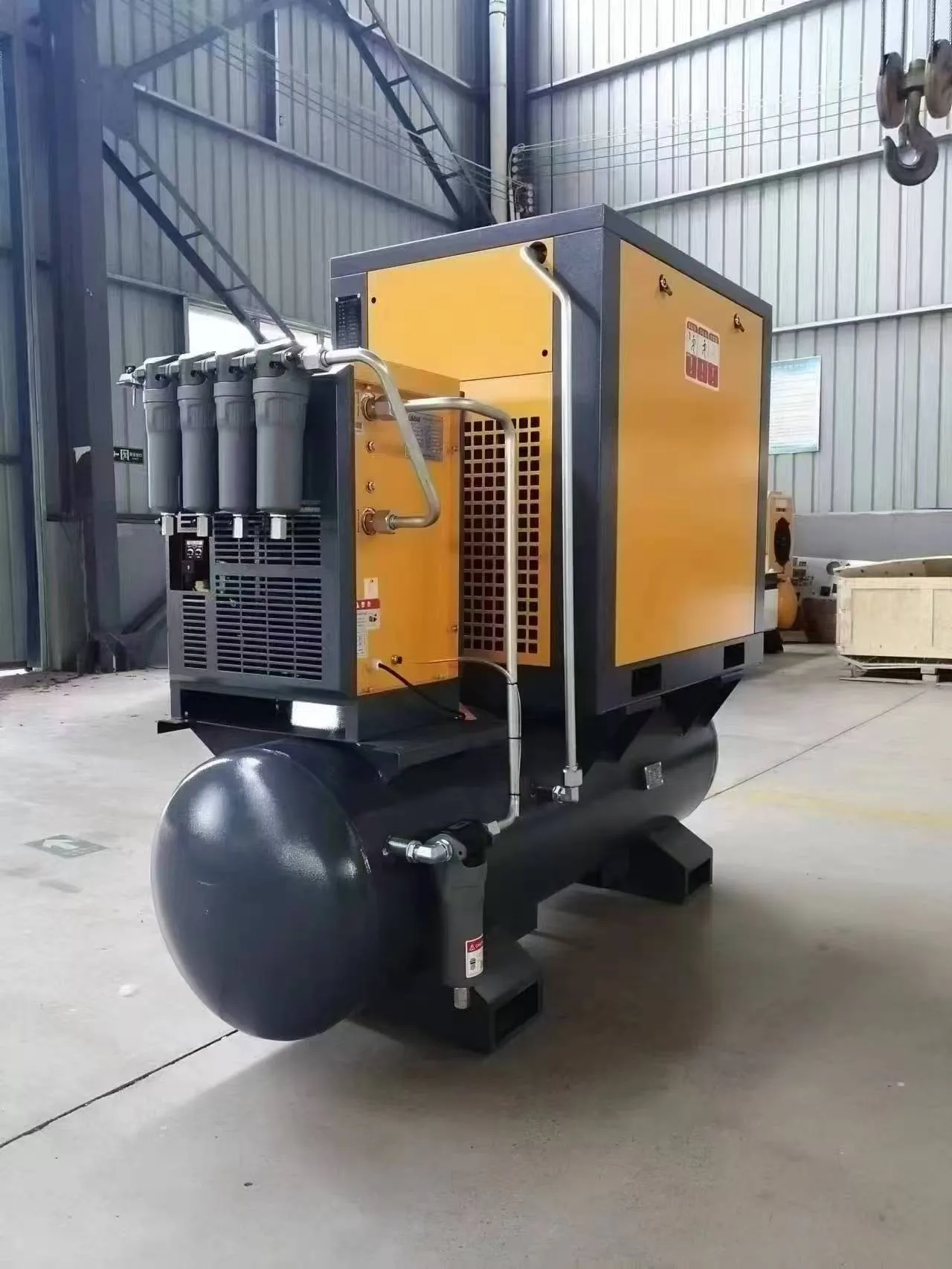

Auxiliary System: 4-in-1 Integrated Screw Air Compressor
Clean compressed-air cutting advantages: Save up to 70% in operating gas expenses using high-pressure clean compressed air at 1.6–2.0 MPa.
- Integrated refrigeration dryer
- 4-stage precision filtration
- Stable high-pressure air supply for sheet and tube cutting
- Reduced consumable gas operating costs

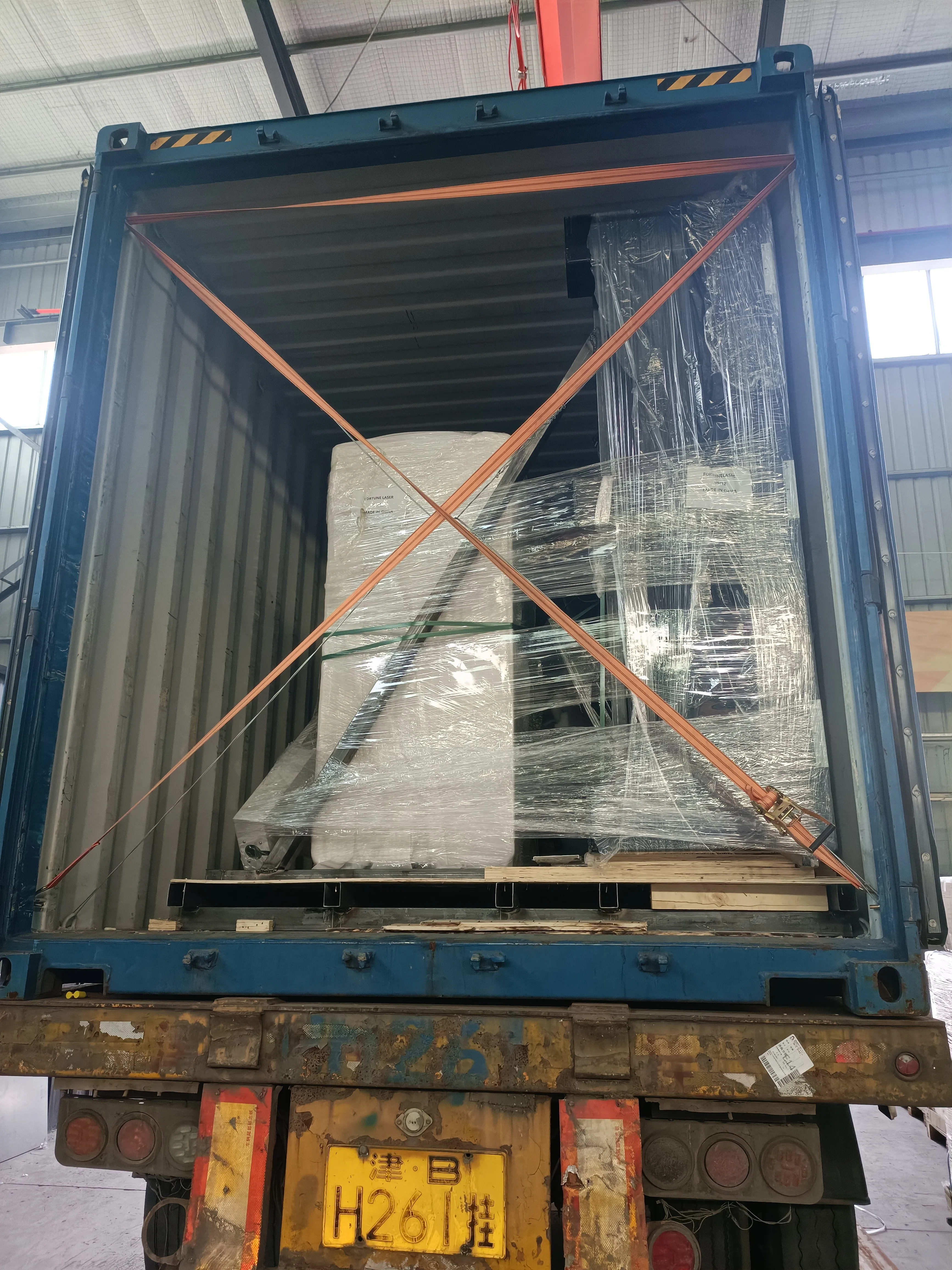

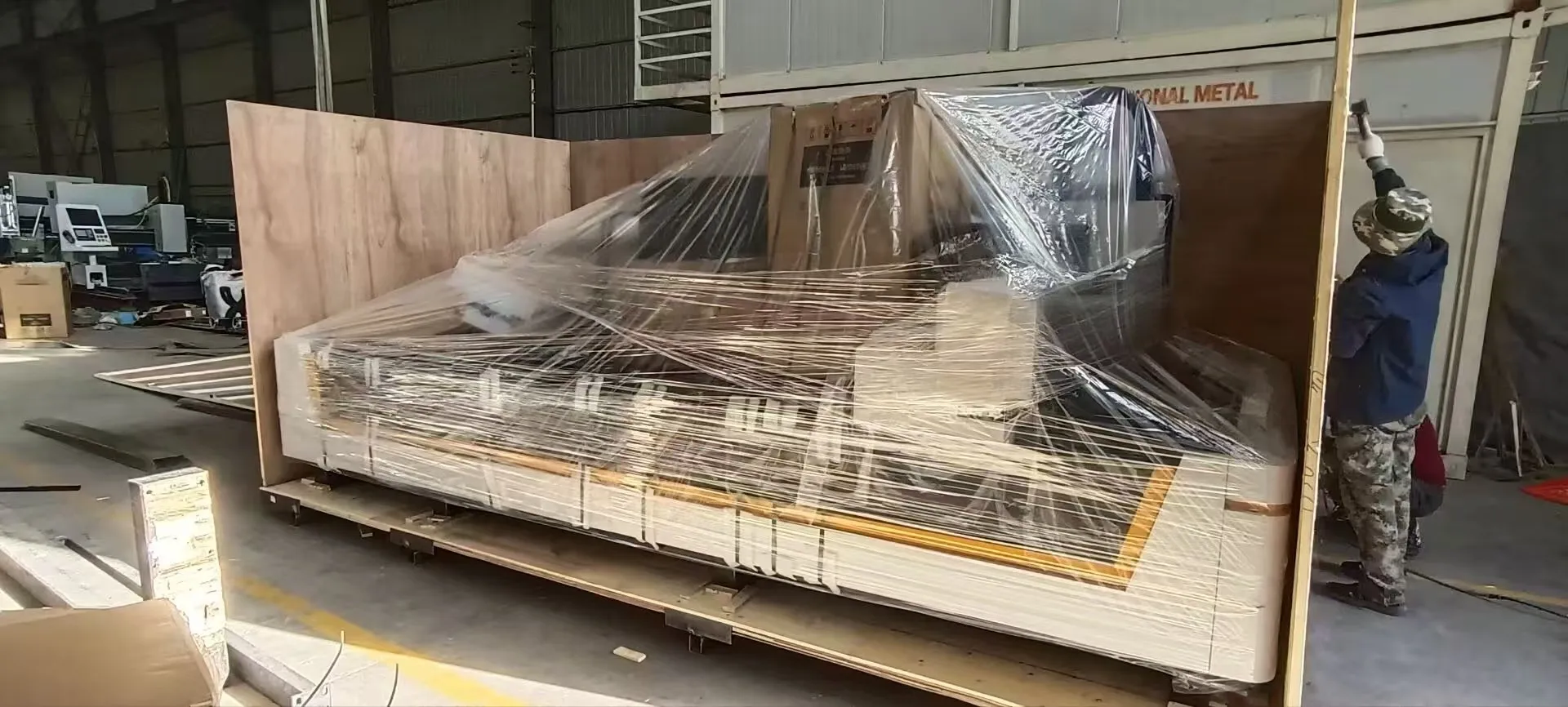

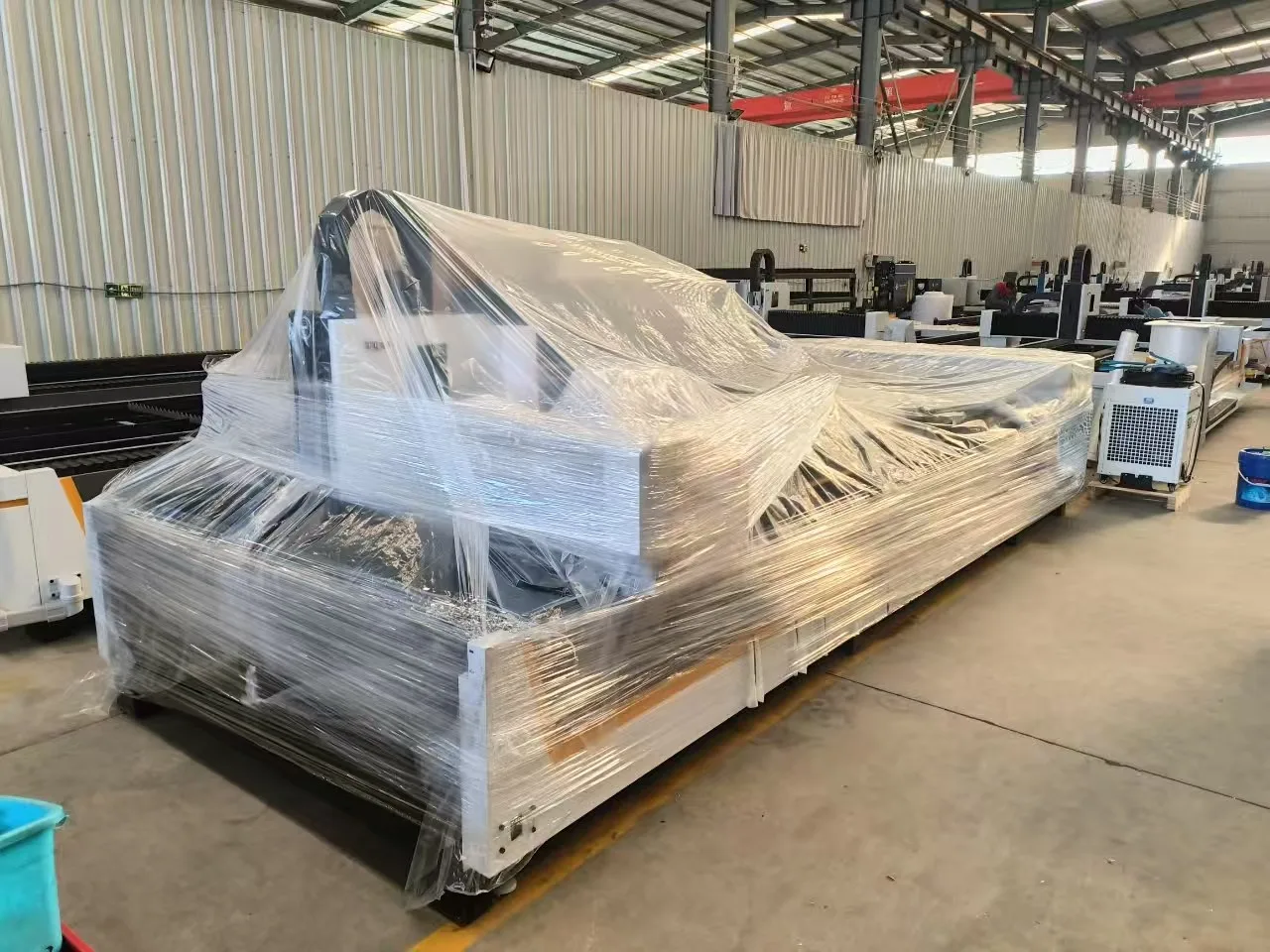

Export Packaging & Shipping Standards
Technical Parameters
| Machine type | Open-bed / Enclosed Dual Shuttle / Sheet & Tube Integrated (1-to-2) / Large-Format Open Bed |
|---|---|
| Working area | 3015 (3000×1500mm) / 4020 (4000×2000mm) / 6025 (6000×2500mm) / Custom Formats |
| Laser source | 1000W – 20000W High-Efficiency Fiber Laser |
| Control system | Intelligent CNC control |
| Materials | Carbon steel, stainless steel, aluminum, brass, copper, galvanized sheet, and metal tubes (round/square/rectangular) |
Frequently Asked Questions
Configurations from 1000W up to 20000W (20kW) are available to match everything from precision thin-sheet cutting to 50mm heavy-plate fabrication.
Table sizes and formats supported
We offer standard sizes including 3015 (3m×1.5m), 4020 (4m×2m), 6025 (6m×2.5m), as well as customized large-format ground-rail tables and 1-to-2 sheet & tube dual-use machines.
It cuts carbon steel, stainless steel, aluminum, brass and copper with the appropriate assist gas and parameters.
Can compressed air be used as assist gas?
Yes. The optional 4-in-1 integrated screw air compressor supplies clean, high-pressure air at 1.6–2.0 MPa.
