Product Overview

The 3D laser marking machine equipped with a 355nm UV cold laser source delivers precision internal engraving on curved, spherical, and stepped surfaces without manual refocusing. Its 3D dynamic galvanometer system auto-adjusts the Z-axis focus in real time, enabling clean marks on irregular workpiece geometries that flat-field marking systems cannot handle. The cold UV laser produces an extremely small spot with minimal heat-affected zone, so materials such as glass, plastic, silicone, and coated metal are neither burned nor deformed during the marking process.

With a repeat accuracy of ±0.001mm and a minimum line width of 0.01mm, it produces permanent, non-fade marks — from tiny serial numbers and QR codes to intricate 3D patterns. The 355nm wavelength is absorbed efficiently by a wide range of substrates, eliminating the need for chemical additives or pre-treatment in most applications. This UV laser marking machine handles both offline single-piece marking and assembly line flight marking at engraving speeds up to 12,000mm/s, maintaining consistent output quality across production volumes from small batches to high-throughput runs.

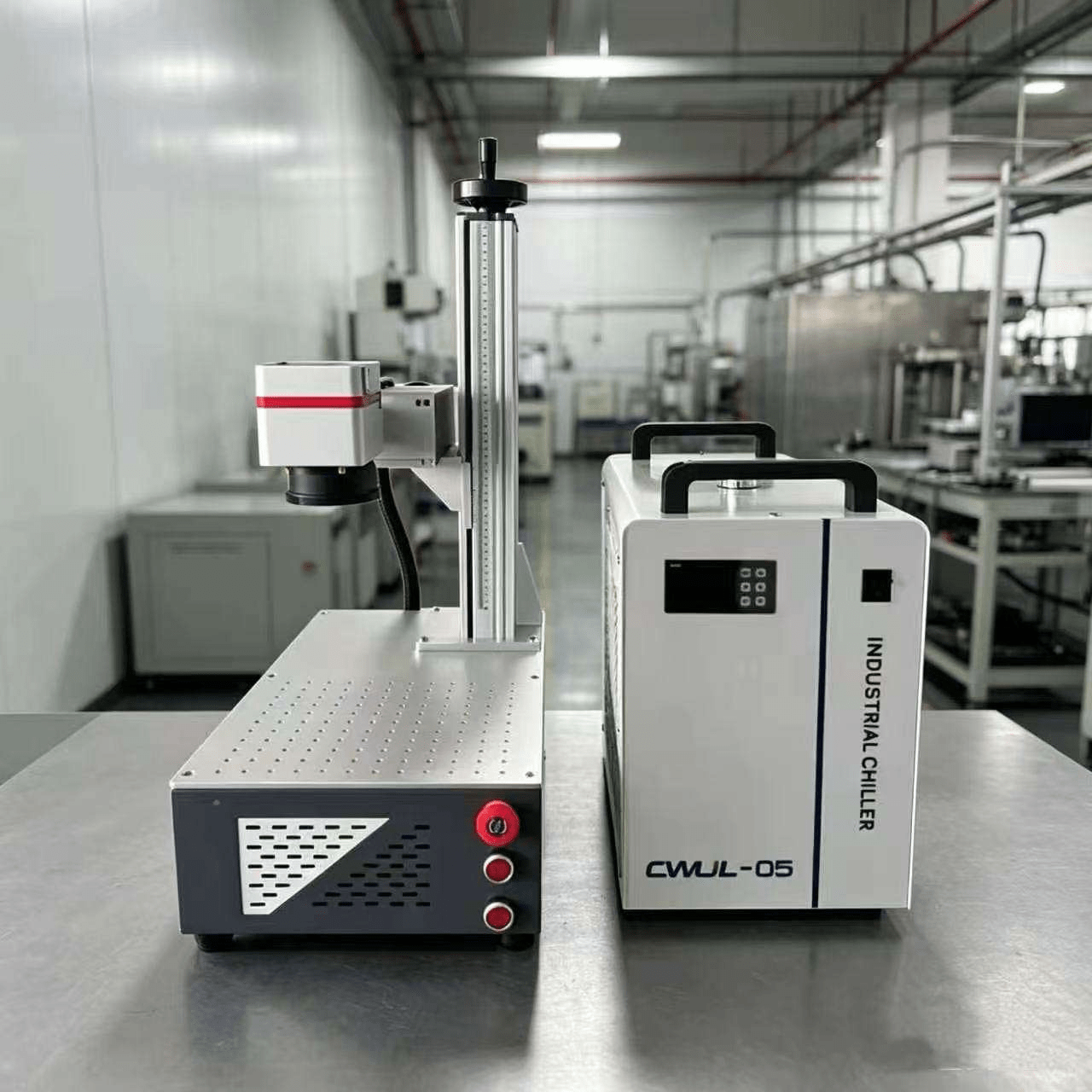

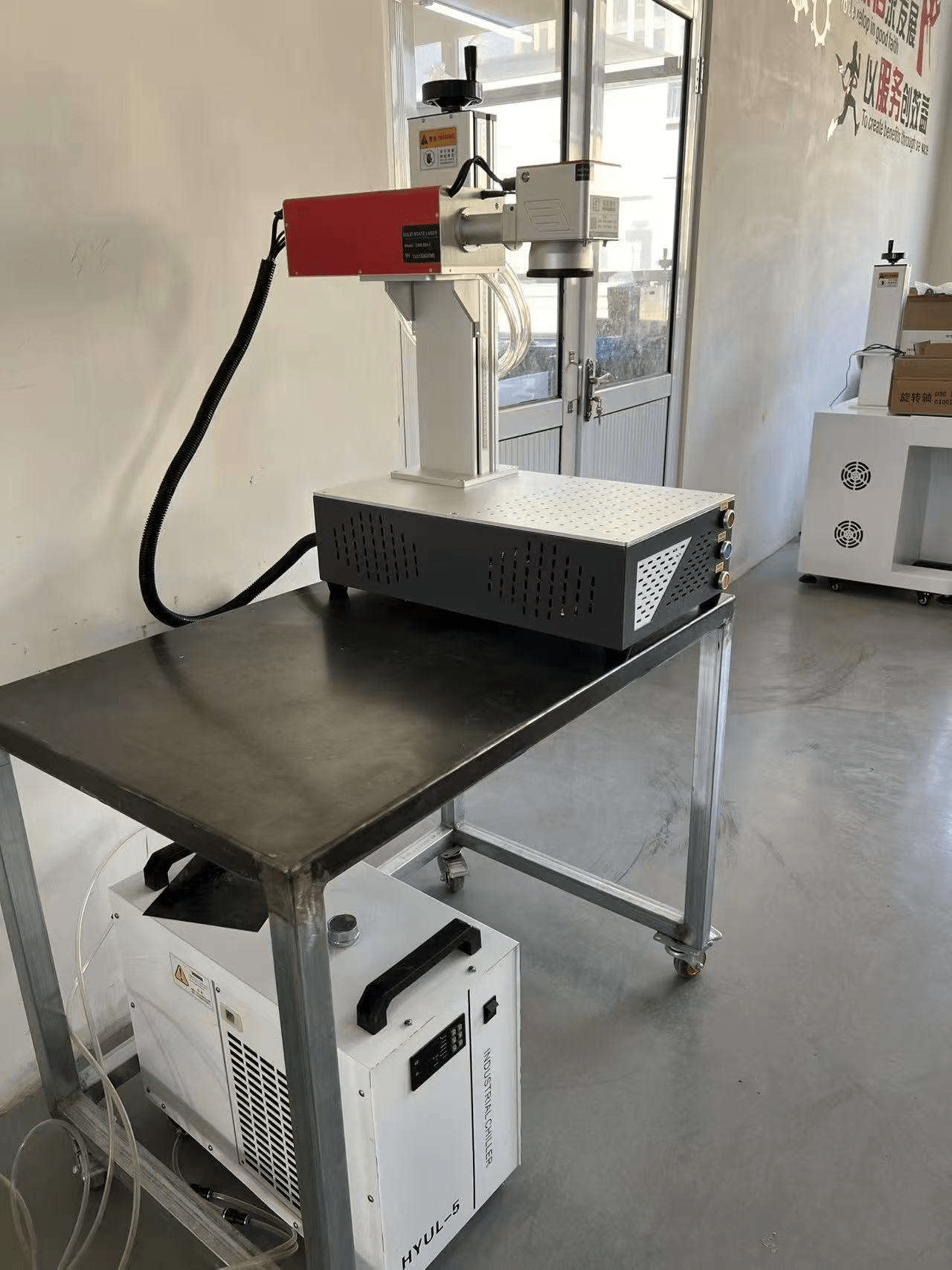

The compact cabinet houses an industrial-grade UV laser source paired with a water chiller, supporting round-the-clock production runs. An optional CCD visual positioning module can be added for automatic workpiece alignment, further reducing setup time on batch jobs. The machine is CE and FDA certified, with a built-in protective cover that blocks UV radiation during operation. Every unit ships with a UDisk, positioning bar, power cable, USB cable, hexagonal wrench, color aluminum sheet, goggles, and foot switch, so the workstation is ready for immediate use upon arrival.

Technical Specifications

Product Features

3D Dynamic Galvanometer — Auto Z Focus on Irregular Surfaces

The 3D dynamic galvanometer system continuously adjusts the focal plane along the Z-axis as the laser head moves, so curved, spherical, and stepped workpieces are marked in a single pass. No manual refocusing is needed between different surface heights, which cuts setup time on complex parts and eliminates the depth-of-field limitation of 2D systems. The scope of marking reaches 150×150mm, covering most common industrial part sizes in a single field. This 3D laser marking machine can therefore process cylindrical containers, domed enclosures, stepped metal blocks, and concave molds without repositioning the workpiece. For production runs that mix flat and curved parts, the same program handles both without operator intervention between geometries.

UV Cold Laser — No Burn, No Deformation

At 355nm, the UV laser operates in the cold-processing regime where photon energy breaks molecular bonds directly rather than heating the material. The tiny focal spot and pulse width of 10–50ns keep the heat-affected zone to a minimum, so fragile substrates like glass, acrylic, and silicone are marked with no cracking, burning, or surface deformation. This 355nm laser marker also preserves the structural integrity of thin ceramic and coated metal parts, making it suitable for medical implants and electronics components that cannot tolerate thermal warping. The cold marking action is what makes internal engraving possible — the beam passes through the surface of transparent materials and creates a mark inside the volume without altering the outer finish. This capability is especially valuable for glass awards, display crystals, and acrylic signage where surface quality is part of the product’s aesthetic value.

Sub-Micron Precision for Fine Detail

With a beam quality of M² < 1.5 and repeat accuracy of ±0.001mm, the system resolves minimum characters of 0.1mm and line widths down to 0.01mm. This precision supports high-density data matrix codes, micro-text for medical device UDIs, and fine decorative patterns on cosmetic packaging. As an internal laser engraving machine, it produces a high-contrast mark inside transparent materials such as crystal and glass without affecting the outer surface finish. The UV reaction creates a permanent white or frosted appearance that is readable under any lighting and does not fade under UV exposure or chemical cleaning. For electronics manufacturers, the ability to mark 0.1mm characters on PCB surfaces means lot codes and date stamps fit into the tight spaces between populated components.

High-Speed Production Marking

Engraving line speed reaches 12,000mm/s, which keeps cycle times short for both single-piece and batch workflows. The system supports offline static marking for individual parts and flight marking on an assembly line, where items pass under the laser head without stopping. This dual-mode flexibility lets a single 3D laser marking machine handle prototyping, small-batch work, and full production runs using the same calibration. For high-volume production, the flight marking mode maintains throughput without sacrificing the ±0.001mm repeat accuracy that smaller parts demand. The transition between modes requires no hardware change — the same galvanometer and software configures for either mode through the job settings panel.

Comprehensive Software and File Support

The control software accepts 2D and 3D file formats, allowing operators to import vector graphics, CAD models, and bitmap images directly. Marking depth, contrast, density, and fill patterns can be adjusted per job, and pre-set material parameter libraries reduce trial-and-error on common substrates. The system is compatible with mainstream graphic formats, so no proprietary conversion is needed between design and production. Operators can store job files on the included UDisk and transfer them to the machine without a network connection, which is useful for clean-room or security-restricted factory floors. The software also supports batch numbering and serialization, enabling automatic increment of serial numbers across a production run without manual editing of each file.

Business Value

Switching to a 355nm UV laser eliminates two recurring costs from traditional marking methods: consumables such as inks, chemical etchants, and labels, and the waste disposal or ventilation equipment those consumables require. The cold laser process leaves no residue and produces no fumes, which simplifies factory compliance with environmental and workplace safety regulations. Over a production year, the elimination of ink cartridge replacements, solvent purchases, and label stock alone can offset a significant portion of the equipment investment.

Because the same 3D laser marking machine works on glass, metal, plastic, silicone, ceramic, and PCB without tool changes or consumables, a single station replaces what would otherwise be several dedicated processes. This reduces equipment footprint on the shop floor and lowers the capital outlay per material type. The industrial UV laser source, paired with a dedicated water chiller, is rated for sustained 24-hour operation, so the machine can run across multiple shifts without the thermal drift that affects air-cooled systems. The water chiller maintains the laser diode temperature within the specified 15°–35°C range regardless of ambient factory conditions. As a 3D laser marking machine, it eliminates the need for separate flat-field and rotary marking systems by handling both geometries in one unit.

For contract manufacturers and OEM suppliers, the ability to mark curved surfaces and internal cavities without a secondary operation reduces handling damage and rework rates. The optional CCD visual positioning module further cuts labor by aligning workpieces automatically, which is particularly valuable when batches contain parts with slight dimensional variation. A single operator can oversee multiple machines, since the visual positioning eliminates the need to manually register each part under the laser head. Over a typical production shift, the time saved on manual alignment alone can increase effective throughput by 15–25% on batch jobs. Handling both flat and 3D workpieces in one setup also reduces the number of dedicated fixtures a shop needs to maintain. This 3D laser marking machine is a cost-effective UV laser marking machine for manufacturers scaling their production.

Applications

In electronics manufacturing, this UV laser marking machine marks PCBs and components with serial numbers, date codes, and 2D matrices. The 355nm laser works on FR4, ceramic substrates, and molded plastic housings without burning the board surface or damaging sensitive nearby components. The cold UV action also suits silicone keypads, rubber gaskets, and connector housings that would deform under IR laser heat. For PCB traceability, the system marks directly onto solder mask and bare copper areas without affecting electrical conductivity. The fine 0.01mm line width allows high-density data matrix codes to be placed in the limited real estate between surface-mount components.

Medical device manufacturers use the system for UDI marking on surgical instruments, implantable devices, and packaging. The high-contrast, non-fade mark withstands repeated sterilization cycles — autoclave, ethylene oxide, and gamma irradiation — without degrading. The 0.1mm minimum character size allows micro-marking of lot numbers on small-diameter tools and catheters, making this glass laser engraving machine a practical choice for medical packaging lines that also work with transparent components. The 355nm wavelength is particularly well-suited for borosilicate glass and other medical-grade transparent materials that are common in vials, syringes, and diagnostic slides. For regulatory compliance, the mark maintains legibility over the entire lifetime of the device, which is a requirement for FDA UDI and EU MDR traceability. This 3D laser marking machine meets the marking precision standard that medical device traceability demands, and choosing it for medical UDI applications ensures consistent mark quality across instruments of varying surface geometries.

For the cosmetics and packaging industries, a 3D laser marking machine marks logos, batch codes, and decorative patterns on perfume bottles, lipstick tubes, and cream jars made of glass or acrylic. The 3D galvanometer follows curved container surfaces in one pass, producing a clean frosted effect that does not rub off during shipping or retail handling. This eliminates the need for adhesive labels or silk-screen printing, both of which add per-unit consumable cost and can peel or scratch over time. The machine can switch between batch codes on one job and decorative logos on the next with the same software setup.

In automotive and aerospace, the system marks serial numbers and part identifiers on coated metal brackets, valve bodies, and interior trim pieces where a permanent, non-removable mark is required for traceability through the supply chain. The mark survives exposure to lubricants, hydraulic fluids, and cleaning solvents commonly encountered in these industries. For the handicraft and giftware sector, the machine serves as an internal laser engraving machine for crystal awards, glass trophies, and acrylic signage. The 3D focus capability enables engraving inside irregularly shaped glass blocks and spheres, creating depth effects that flat-field engravers cannot produce. The included color aluminum sheet is used for test runs and sample proofs before marking on the actual workpiece. Whether a buyer needs a 3D laser marking machine for prototyping, a UV laser marking machine for high-volume PCB marking, or a glass laser engraving machine for decorative products, this single system covers all three use cases without hardware modification.

Quality & Safety

The machine carries CE and FDA certification, confirming that the 355nm laser marker meets applicable safety standards for industrial equipment in both European and US markets. A built-in protective cover blocks UV radiation during operation, so the enclosure can be opened only when the laser is disabled. The water-cooled design maintains stable internal temperatures within the 15°–35°C ambient range, preventing thermal drift that could affect positioning accuracy over long production runs. The included goggles provide additional eye protection for operators during setup and calibration. The rugged cabinet housing is designed for industrial shop-floor environments, protecting the laser source and optics from dust and vibration. Both CE and FDA certifications are provided with the documentation package, which simplifies the equipment validation process for buyers in regulated industries who need a certified 355nm laser marker for their production line.

Why Choose This 3D Laser Marking Machine

What distinguishes this 3D laser marking machine from conventional 2D flat-field systems is the 3D dynamic galvanometer that auto-adjusts Z focus on curved and stepped surfaces. This eliminates the need to fixture parts at a uniform height or to run multiple passes at different focal planes, which directly reduces cycle time on irregular workpieces. The 355nm UV cold laser extends the machine’s usable material range to glass, acrylic, silicone, thin ceramic, and coated metal without burning or warping — materials that IR or fiber lasers cannot process cleanly. For buyers who need a single 3D laser marking machine to replace multiple dedicated marking stations, the material versatility and 3D capability directly translate to a lower total equipment cost.

Compared to other UV laser marking machines that use a fixed focal plane, this model offers a wider scope of marking at 150×150mm and a higher line speed of 12,000mm/s. The included water chiller supports continuous 24-hour operation, which is a practical requirement for factories running three shifts. The optional CCD visual positioning further reduces operator dependency, making the system suitable for lights-out manufacturing environments. The CE and FDA certifications provide documented compliance for buyers in regulated industries who need to submit equipment safety documentation as part of their own quality audits. As a versatile 3D laser marking machine designed for production environments, it delivers consistent marking quality across material types and workpiece geometries with minimal operator intervention. For buyers evaluating a 3D laser marking machine for the first time, the included accessory kit and pre-set material libraries shorten the learning curve from unboxing to first production mark.

FAQ

Q1: What materials can this 3D laser marking machine process?

A: It marks glass, acrylic, plastic, silicone, PCB, ceramic, coated metal, medical parts, and perfume bottles. The 355nm cold UV laser does not burn or deform fragile substrates.

Q2: What is the minimum character size and line width achievable?

A: Minimum characters are 0.1mm, and the minimum line width is 0.01mm, enabled by a beam quality of M² < 1.5 and repeat accuracy of ±0.001mm.

Q3: Does the machine require manual refocusing when marking curved surfaces?

A: No. The 3D dynamic galvanometer system auto-adjusts the Z-axis focus in real time, so curved, spherical, and stepped surfaces are marked in a single pass.

Q4: What is the maximum marking speed?

A: The engraving line speed reaches 12,000mm/s, and the system supports both offline static marking and in-line flight marking for production lines.

Q5: What certifications does the laser system carry?

A: The machine is CE and FDA certified, with a built-in protective cover that blocks UV radiation during operation.

Q6: What is the cooling method, and can it run continuously?

A: Water-cooling via a dedicated chiller. The system is designed for 24-hour continuous operation without thermal drift under an ambient temperature of 15°–35°C.

Q7: What file formats does the software support?

A: The software accepts 2D and 3D file formats, including vector and bitmap graphics, with adjustable depth, contrast, filling, and pre-set material parameters.

Q8: What accessories are included with the machine?

A: The package includes a UDisk, positioning bar, power cable, USB cable, hexagonal wrench, color aluminum sheet, goggles, and foot switch.

Q9: Can the machine be integrated into an automated production line?

A: Yes. It supports flight marking on moving workpieces, and an optional CCD visual positioning module can be added for automatic workpiece alignment.

Q10: What is the scope of marking?

A: The marking area is available in 110×110mm or 150×150mm, depending on the configuration selected.
