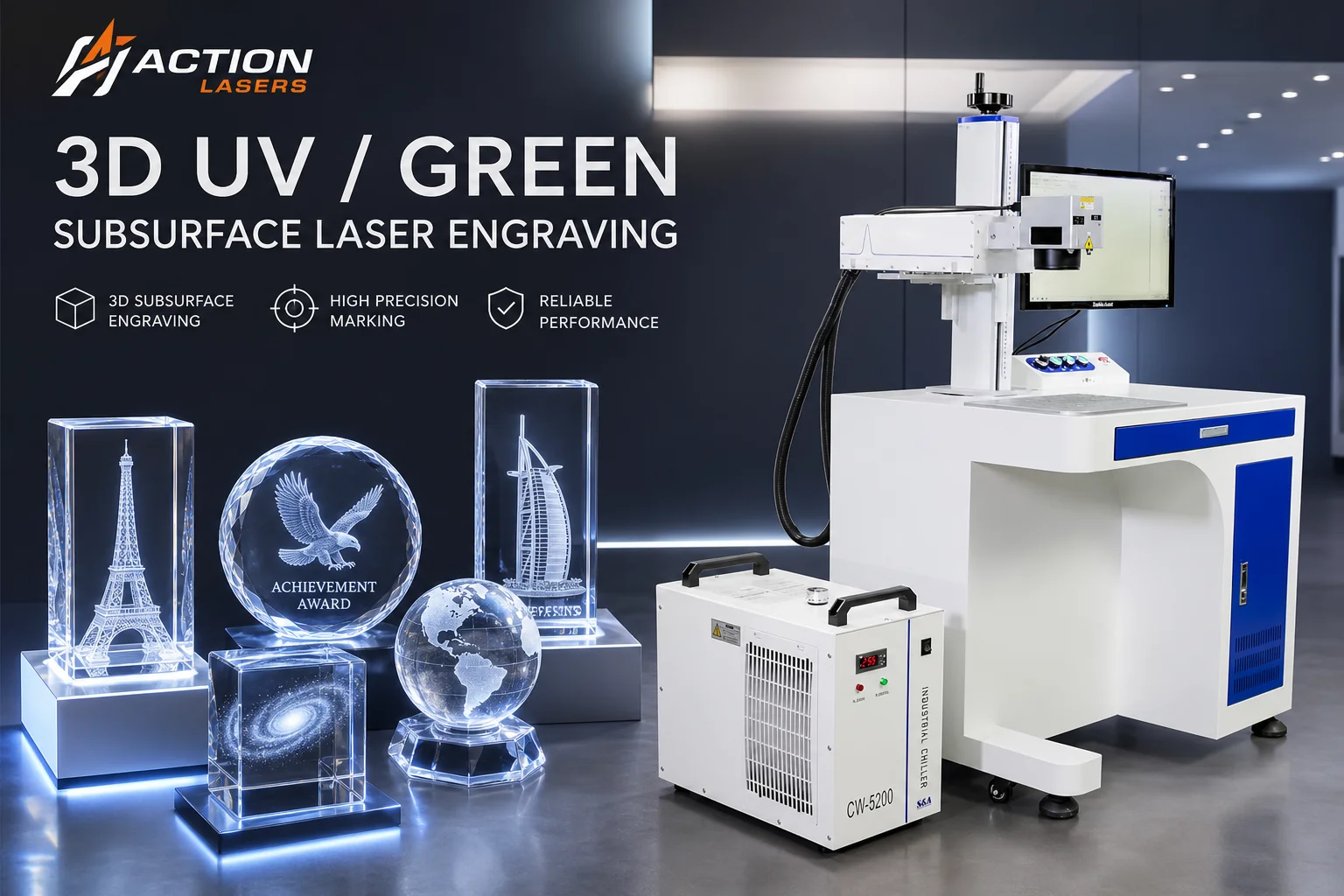

The ActionLasers™ 3D Subsurface Crystal Laser Engraving Machine is an industrial-grade, non-contact optical machining workstation engineered specifically for high-speed, high-density subsurface point-cloud engraving (SSLE) inside transparent dielectric materials—including optical K9 crystal, fused quartz, borosilicate glass, high-purity acrylic, and optical polymers.
Executive Summary & System Overview
Equipped with advanced diode-pumped solid-state (DPSS) UV (355nm) or High-Energy Green (532nm) laser engines, synchronized with dynamic multi-axis optical scanners, the system delivers up to 4,000–5,000 laser micro-dots per second. By concentrating high-peak-power nanosecond pulses precisely at calculated focal depths, it creates microscopic optical scattering centers (vaporization points) inside the material matrix without causing any surface ablation, micro-cracking, or structural weakening of the external glass walls.
Key Technical Specifications
| Parameter | 355nm UV Cold Laser Option | 532nm High-Energy Green Laser Option |
|---|---|---|
| Laser Wavelength | 355 nm (Ultraviolet DPSS) | 532 nm (Green DPSS Frequency-Doubled) |
| Laser Power Options | 3W / 5W / 10W / 15W | 5W / 10W / 20W |
| Pulse Duration | < 15 ns | < 10 ns |
| Repetition Rate | 20 kHz – 100 kHz | 1 kHz – 5 kHz |
| Max Engraving Speed | 2,500 – 4,000 dots/sec | 3,000 – 5,000 dots/sec |
| Resolution / Dot Size | Up to 1200 DPI (Micro-dot Ø 20–40 µm) | Up to 800 DPI (Micro-dot Ø 40–80 µm) |
| Max Engraving Volume (X×Y×Z) | 150 × 150 × 100 mm | 300 × 400 × 150 mm (Large Bed Available) |
| Beam Quality (M²) | M² < 1.2 (TEM00 Single Mode) | M² < 1.3 |
| Positioning Accuracy | ± 0.005 mm | ± 0.01 mm |
| Cooling Method | Closed-Loop Industrial Chiller (CW-5200 ±0.3°C) | Closed-Loop Water Chiller |
| Supported Formats | DXF, OBJ, STL, 3DS, PLT, Point Cloud (ASC, PTS) | DXF, OBJ, STL, 3DS, PLT, Point Cloud (ASC, PTS) |
How 3D Subsurface Laser Engraving Works
- Non-Linear Optical Absorption: Transparent optical crystal and glass have high optical transmission at visible and near-UV wavelengths. When a nanosecond laser pulse with gigawatt-level peak power is focused by a telecentric F-theta lens to a focal spot of tens of micrometers, the photon density exceeds the material dielectric breakdown threshold.
- Volumetric Point-Cloud Synthesis: The laser beam passes harmlessly through the outer surface and induces localized plasma micro-explosions precisely at the interior focal point. Each micro-fracture dot refracts ambient light, appearing as a bright white frosted voxel.
- Automated Dynamic Z-Depth Shifting: The workstation coordinates high-speed galvanometers (X/Y axes) with a motorized telecentric Z-axis focal expansion module, assembling millions of discrete points into lifelike 3D floating models in minutes.
Core Application Industries

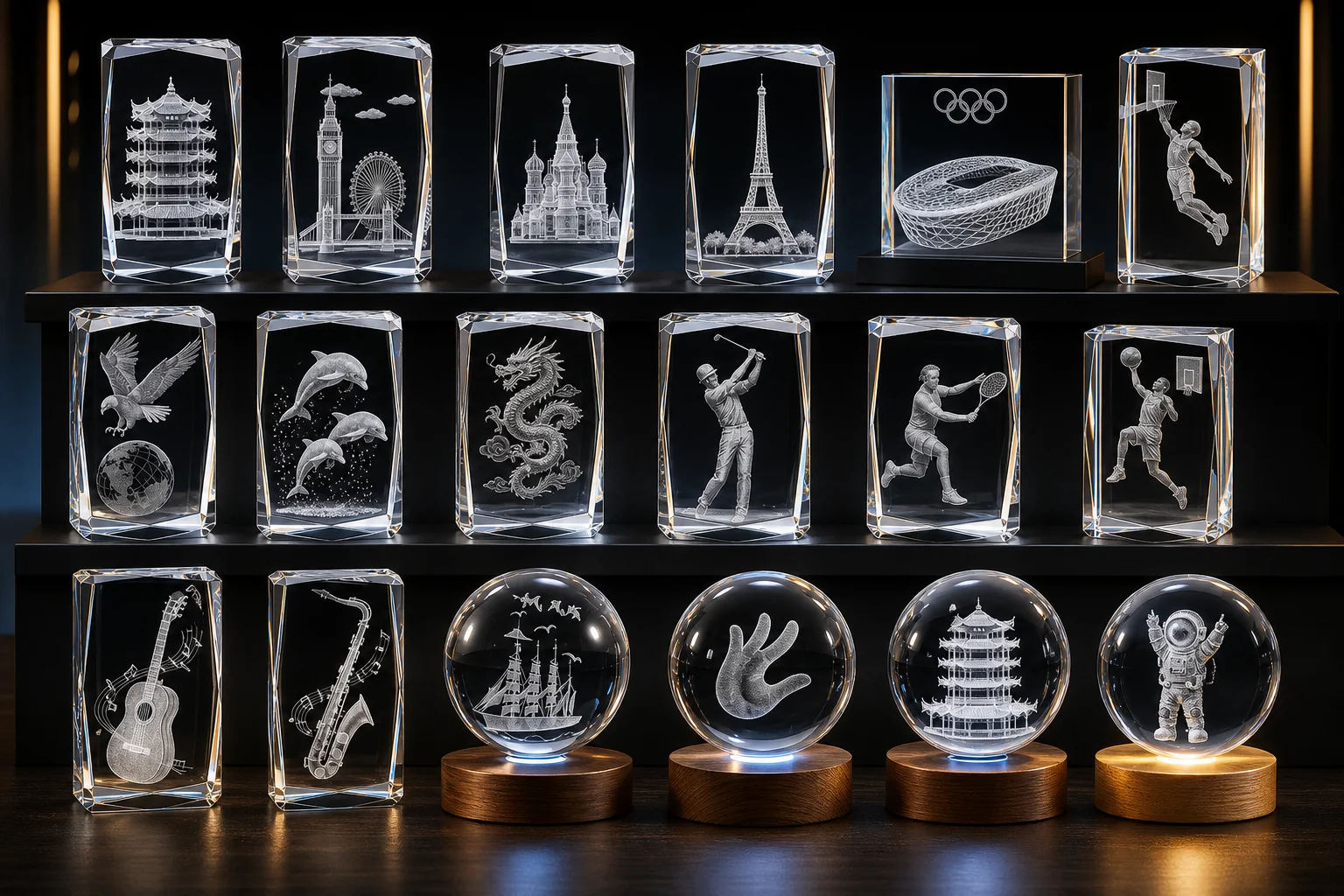

1. Luxury Awards, Corporate Trophies & Fine Crystal Art
- Architectural Miniatures: 3D reproduction of iconic landmarks (e.g., Eiffel Tower, Big Ben, stadiums) inside heavy crystal prisms with sub-millimeter precision.
- Corporate & Sports Trophies: High-density 3D inside engraving of corporate logos, athletes, musical instruments, and bilingual honor inscriptions.

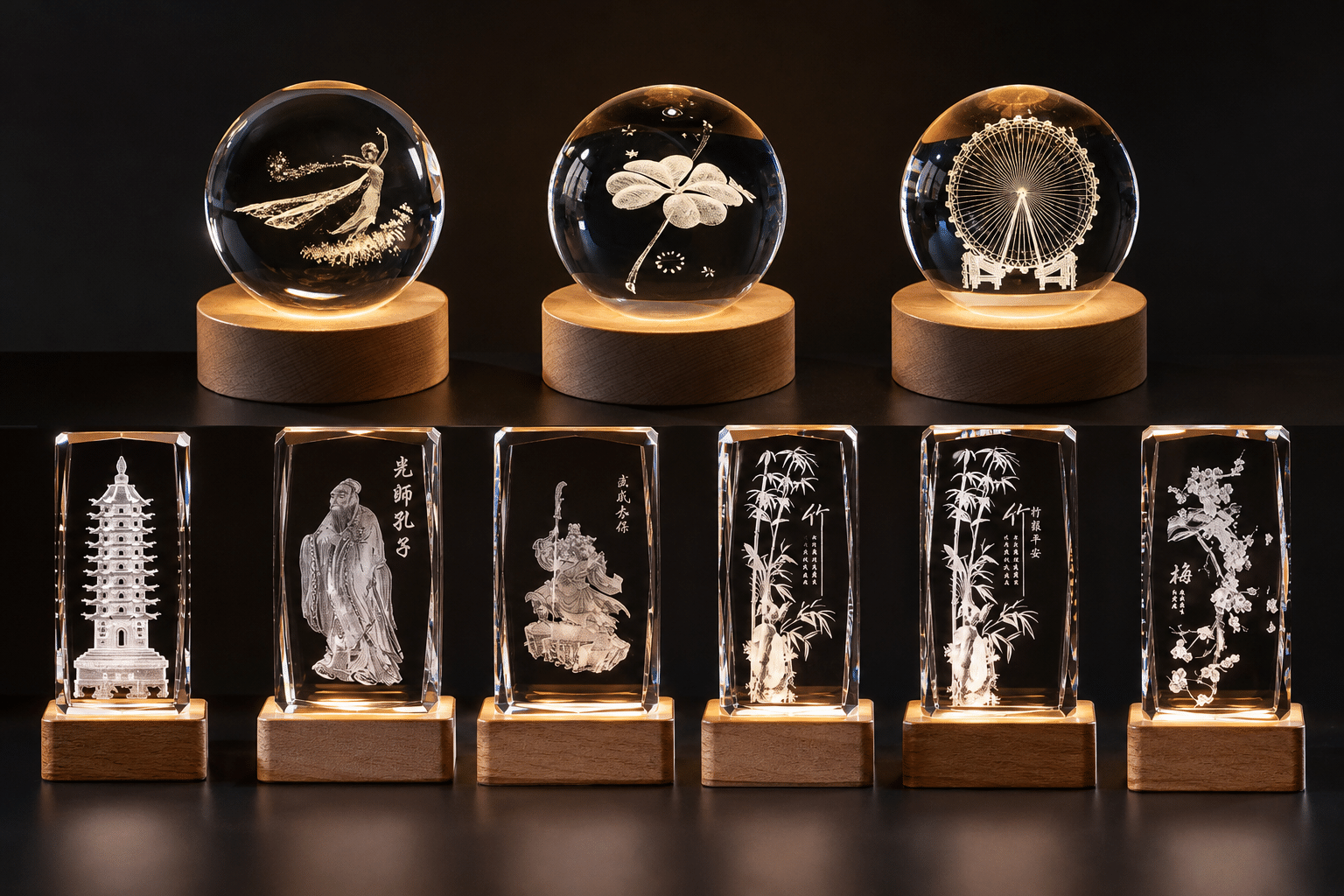

- Illuminated Crystal Spheres: Floating 3D celestial globes, wildlife, and botanical engravings displayed on integrated LED hardwood bases.
2. High-Security Anti-Counterfeit Internal Coding
- Tamper-Proof Internal Serialization: Engraving internal 2D DataMatrix codes and holographic emblems inside perfume bottles, luxury cosmetic containers, and optical lenses without surface contamination.
- Traceable Medical Glassware: Micro-scale volumetric graduation scales and lot numbers inside sealed ampoules and fluidic diagnostic cartridges.
3. Personalized 3D Portrait Photography & Souvenirs
Seamless conversion of 2D/3D camera scans into layered volumetric point-clouds, enabling tourist attractions and boutique studios to deliver custom crystal keepsakes within 2 to 3 minutes.
Frequently Asked Questions (FAQ)
Q1: Does subsurface laser engraving damage or weaken the crystal surface?
A: No. The laser beam maintains a low power density as it passes through the surface and only reaches the energy threshold required for ionization at the tightly focused internal focal plane. The outer surface remains 100% polished, smooth, and physically intact.
Q2: What is the difference between 355nm UV and 532nm Green laser for inside carving?
A: 355nm UV Laser produces smaller micro-dots (20–40 µm) with zero thermal diffusion (“cold processing”), ideal for ultra-delicate glassware and microscopic anti-counterfeit markings. 532nm Green Laser delivers higher pulse energy and faster volume processing rates, making it standard for large corporate crystal blocks and commercial trophies.
Q3: How are 2D images and 3D CAD files converted into laser engraving point clouds?
A: Our specialized 3D Crystal Studio software automatically slices 3D CAD models (STL, OBJ, 3DS) or 2D photo depth maps into optimized multi-layer point clouds, eliminating redundant overlapping dots and optimizing laser travel trajectories for maximum engraving speed.
